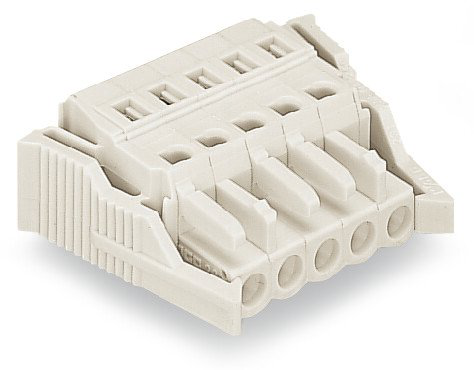

WAGO 721105037000 5-pole Female Plug Connector
The WAGO 721-105/037-000 is a versatile 5-pole female plug connector suitable for a wide range of industrial applications. Its CAGE CLAMP actuation simplifies wiring, allowing for both vertical and horizontal cable assembly. The integrated test ports facilitate easy circuit testing, while the locking lever and mismating protection ensure secure and reliable connections. This connector is ideal for applications requiring robust and efficient power distribution and signal transmission. It is designed to be compatible with various conductor types and offers excellent protection against mismating.
WAGO 721105037000 5-pole Female Plug Connector Specifications:
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 16 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 15 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 2.5 mm²
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 5
- Total number of connection points: 5
- Total number of potentials: 5
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 5 mm / 0.197 inch
- Width: 41.6 mm / 1.638 inch
- Height: 14.3 mm / 0.563 inch
- Depth: 29.6 mm / 1.165 inch
- Contact type: Female connector/socket
- Connector connection type: for conductors
- Mismating protection: Yes
- Locking of plug-in connection: locking lever
- Color: light gray
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Copper alloy
- Contact plating: tin-plated
- Fire load: 0.173 MJ
- Weight: 10.5 g
- Limit temperature range: -60 … +85 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918354103
- Customs Tariff No.: 85366990990
