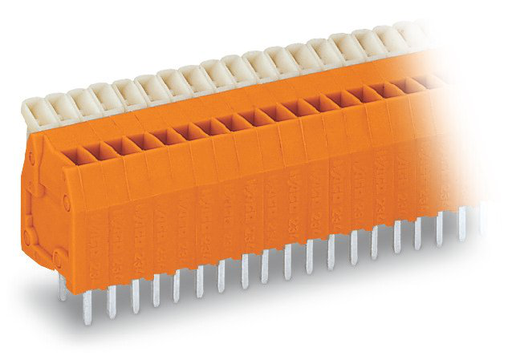

WAGO 234536 36-pole PCB Terminal Block
The WAGO 234-536 is a 36-pole PCB terminal block designed for efficient and secure connections in electronic systems. Its push-button actuation simplifies in-the-field wiring, while the CAGE CLAMP connection ensures reliable contact. The double solder pins provide exceptional mechanical stability when mounted on a PCB. Suitable for a wide range of industrial applications, this terminal block offers a combination of convenience, reliability, and performance. It is ideal for applications requiring frequent adjustments or maintenance.
WAGO 234536 36-pole PCB Terminal Block Specifications:
- Rated Voltage (III/3): 63 V
- Rated Surge Voltage (III/3): 2.5 kV
- Rated Voltage (III/2): 160 V
- Rated Surge Voltage (III/2): 2.5 kV
- Rated Voltage (II/2): 320 V
- Rated Surge Voltage (II/2): 2.5 kV
- Rated Current: 6 A
- Rated Voltage UL (Use Group B): 150 V
- Rated Current UL (Use Group B): 4 A
- Rated Voltage CSA (Use Group B): 150 V
- Rated Current CSA (Use Group B): 4 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Push-button
- Solid Conductor Range: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-Stranded Conductor Range: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-Stranded Conductor with Insulated Ferrule: 0.25 mm²
- Fine-Stranded Conductor with Uninsulated Ferrule: 0.25 mm²
- Strip Length: 5 … 6 mm / 0.2 … 0.24 inch
- Conductor Connection Direction to PCB: 90 °
- Pole No.: 36
- Total Number of Connection Points: 36
- Total Number of Potentials: 36
- Number of Connection Types: 1
- Number of Levels: 1
- Pin Spacing: 2.54 mm / 0.1 inch
- Width: 93.64 mm / 3.687 inch
- Height: 18 mm / 0.709 inch
- Height from Surface: 14 mm / 0.551 inch
- Depth: 14.4 mm / 0.567 inch
- Solder Pin Length: 4 mm
- Solder Pin Dimensions: 0.5 x 0.75 mm
- Drilled Hole Diameter (Tolerance): 1.1 mm (+0.1)
- Material (Insulation): Polyamide (PA66)
- Flammability Class (UL94): V0
- Color: orange
- Fire Load: 0.256 MJ
- Weight: 16.6 g
