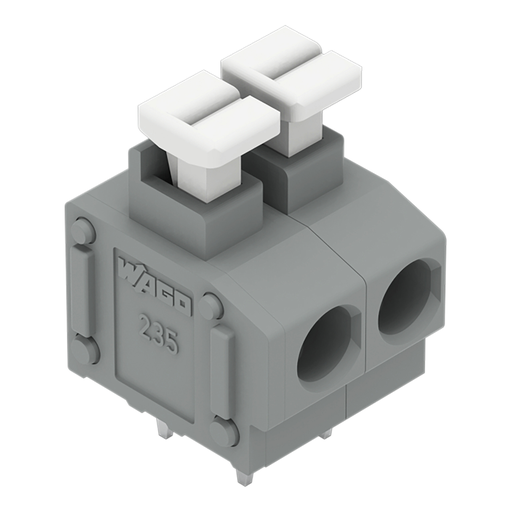

WAGO 235402331000 2-pole PCB Terminal Block
The WAGO 235-402/331-000 is a 2-pole PCB terminal block designed for reliable connections in various industrial applications. It utilizes the innovative push-in CAGE CLAMP® technology for secure and easy termination of both solid and stranded conductors. The block's compact design and 5/5.08 mm pin spacing make it suitable for a wide range of PCB layouts. It is ideal for applications requiring robust and space-efficient power distribution and signal transmission.
WAGO 235402331000 2-pole PCB Terminal Block Specifications:
- Rated voltage (III / 3): 250 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 17.5 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-button
- Solid conductor: 0.2 … 1.5 mm² / 20 … 14 AWG
- Fine-stranded conductor: 0.75 … 1.5 mm² / 20 … 14 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 1 mm²
- Strip length: 9 … 10 mm / 0.35 … 0.39 inch
- Conductor entry angle to the PCB: 0 °
- No. of poles: 2
- Total number of connection points: 2
- Total number of potentials: 2
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 5/5.08 mm / 0.197/0.2 inch
- Width: 11.5 mm
- Height: 19.1 mm
- Height from the surface: 15.5 mm
- Depth: 12.5 mm
- Solder pin length: 3.6 mm
- Solder pin dimensions: 0.4 x 0.8 mm
- Drilled hole diameter (tolerance): 1 mm
- PCB contact: THT
- Solder pin arrangement: over the entire terminal strip, in line
- Number of solder pins per potential: 2
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.03 MJ
- Weight: 1.6 g
- Limit temperature range: -60 … +105 °C
- Product Group: 4 (Printed Circuit)
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918653992
- Customs Tariff No.: 85369010000
