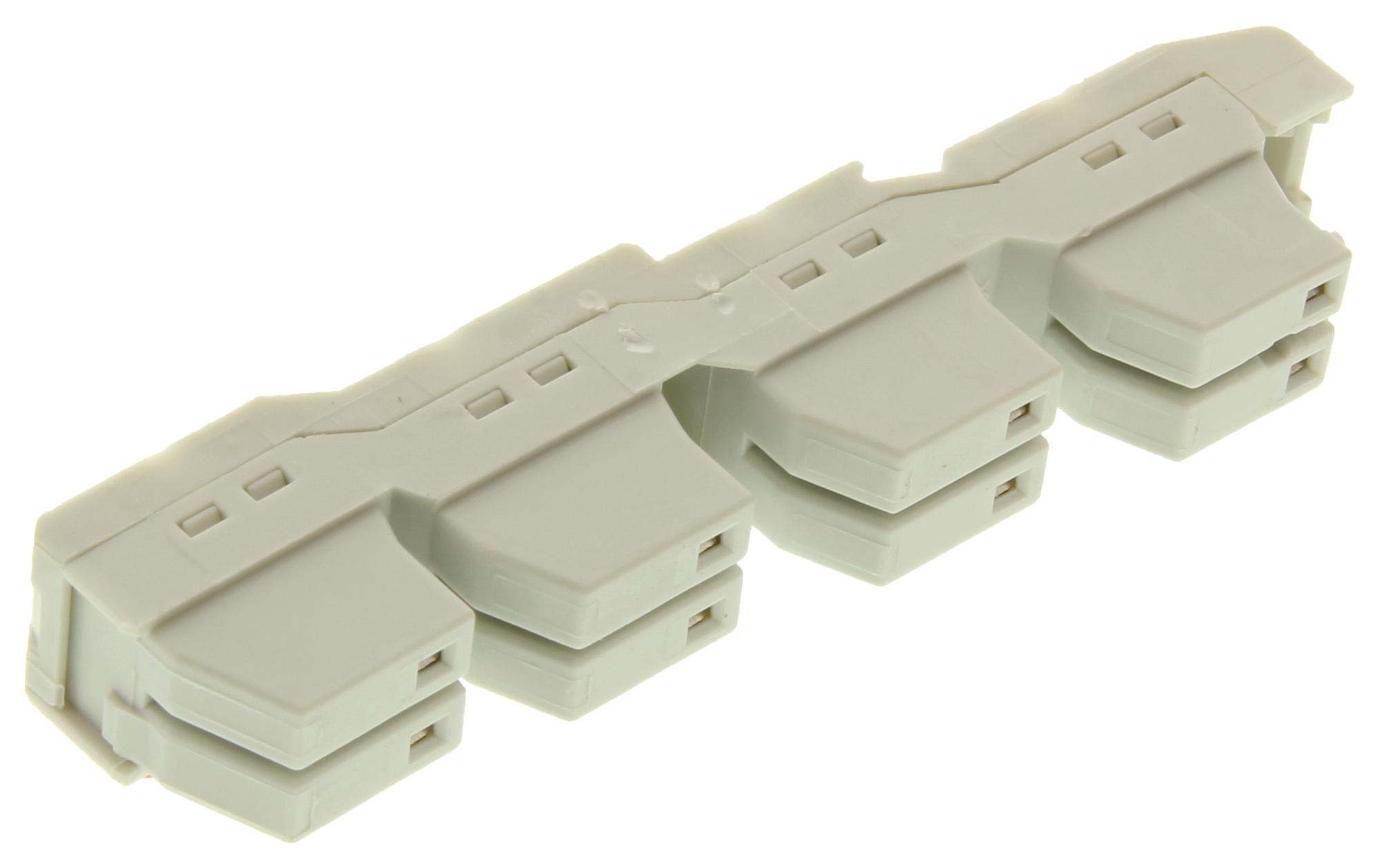

WAGO 753110 Plug Connector
The WAGO 753-110 plug connector is a key component in WAGO’s 750/753 Series I/O-System. Designed for reliable and efficient connections, it accommodates solid conductors ranging from 0.08 to 2.5 mm² (28 to 14 AWG). Its light gray color and compact dimensions (12mm width, 74.3mm depth) make it suitable for space-constrained applications. The connector is pluggable, offering ease of installation and maintenance, and is rated for an operating temperature range of 0 to 55 °C. It holds various approvals including ABS, DNV GL, KR, Lloyds Register, PRS, RINA, and UL, ensuring suitability for demanding industrial environments. The connector’s robust construction and reliable performance make it ideal for use in remote I/O systems and other industrial automation applications.
WAGO 753110 Plug Connector Specifications:
- Rated Current: 10 A
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip Length: 9 … 10 mm / 0.35 … 0.39 inch
- Width: 12 mm / 0.472 inch
- Depth: 74.3 mm / 2.925 inch
- Color: light gray
- Fire Load: 0.204 MJ
- Weight: 11.229 g
- Surrounding Air (Operating) Temperature: 0 … 55 °C
- Surrounding Air (Storage) Temperature: -25 … 85 °C
- Protection Class: IP20
- Product Group: 15 (Remote I/O)
- Country of Origin: CN
- GTIN: 4050821043928
- Customs Tariff No.: 85366990990
