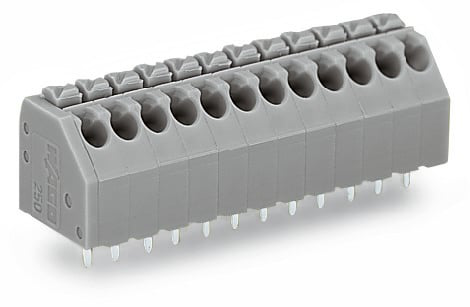

WAGO 250109 9-pole Push-in Terminal Block
The WAGO 250-109 is a compact, 9-pole terminal block ideal for printed circuit board applications. Its push-button design simplifies wiring, accommodating both solid and stranded conductors with ease. The Push-in CAGE CLAMP® connection ensures a secure and reliable connection, while the 45° conductor entry angle optimizes space utilization. This terminal block is suitable for a wide range of industrial applications requiring efficient and reliable power distribution, including automation systems, control panels, and machinery.
WAGO 250109 9-pole Push-in Terminal Block Specifications:
- Nominal Voltage (III/3): 160 V
- Rated Surge Voltage (III/3): 2.5 kV
- Rated Voltage (III/2): 160 V
- Rated Surge Voltage (III/2): 2.5 kV
- Rated Voltage (II/2): 320 V
- Rated Surge Voltage (II/2): 2.5 kV
- Rated Current: 8 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 5 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 5 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 10 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Connection Technology: Push-in CAGE CLAMP®
- Actuation Type: Push-button
- Solid Conductor Size: 0,2 … 1,5 mm² / 24 … 16 AWG
- Fine-Stranded Conductor Size: 0,2 … 1,5 mm² / 24 … 16 AWG
- Fine-Stranded Conductor w/ Insulated Ferrule Size: 0,25 … 1 mm²
- Fine-Stranded Conductor w/ Uninsulated Ferrule Size: 0,25 … 1 mm²
- Strip Length: 8,5 … 9,5 mm / 0.33 … 0.37 inch
- Conductor Connection Direction to PCB: 45 °
- Pole No.: 9
- Total Number of Connection Points: 9
- Total Number of Potentials: 9
- Number of Connection Types: 1
- Number of Levels: 1
- Pin Spacing: 3,5 mm / 0.138 inch
- Width: 33 mm / 1.299 inch
- Height: 16,7 mm / 0.657 inch
- Height from Surface: 13,1 mm / 0.516 inch
- Depth: 12 mm / 0.472 inch
- Solder Pin Length: 3.6 mm
- Solder Pin Dimensions: 0,4 x 0,75 mm
- Drilled Hole Diameter (Tolerance): 1 mm (+0,1)
- Material Group: I
- Insulation Material: Polyamide 66 (PA 66)
- Flammability Class per UL94: V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E Cu)
- Contact Plating: tin-plated
- Fire Load: 0.096 MJ
- Weight: 4.3 g
- Limit Temperature Range: -60 … +105 °C
- Packaging Type: BOX
- Country of Origin: CH
- GTIN: 4044918647670
- Customs Tariff Number: 85369010000
