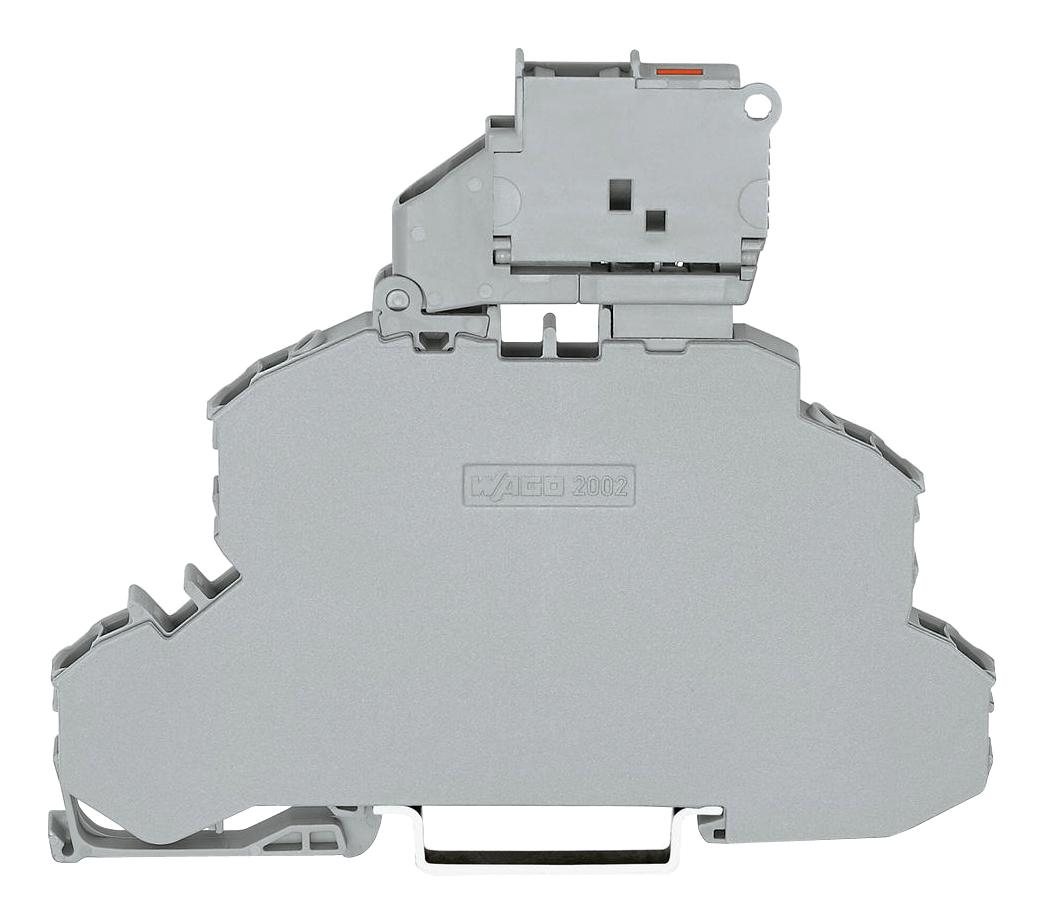

WAGO 200226111000541 Fuse Disconnect Terminal Block
The WAGO 2002-2611/1000-541 is a TOPJOB®S double-deck fuse disconnect terminal block, offering a compact and safe solution for power distribution. It incorporates a pivoting fuse holder for easy fuse replacement and a blown fuse LED indication for quick identification of faults. Designed for rail mounting, this terminal block is suitable for a wide range of industrial applications, including automated machinery, control panels, and power distribution systems. Its robust construction and reliable performance ensure long-lasting operation and enhanced safety.
WAGO 200226111000541 Fuse Disconnect Terminal Block Specifications:
- Rated voltage (III / 3): 250 V
- Rated surge voltage (III/3): 6 kV
- Rated current: 6.3 A
- Operation status indicator: 12 … 30 V
- Rated voltage UL (Use Group B): 30 V
- Rated current UL (Use Group B): 6.3 A
- Rated voltage CSA (Use Group B): 30 V
- Rated current CSA (Use Group B): 6.3 A
- Rated voltage EN (Ex e II): 275 V
- Rated current (Ex e II): 6.3 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
- Width: 6.2 mm / 0.244 inch
- Height: 93 mm / 3.661 inch
- Depth from upper edge of DIN-rail: 76.4 mm / 3.008 inch
- Potential marking: L/L
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Color: gray
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 0.477 MJ
- Weight: 23.1 g
Buy the 2002-2611/1000-541 WAGO Fuse Disconnect Terminal Block | myMectronic
Purchase the WAGO 2002-2611/1000-541 fuse disconnect terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 200226111000541?
You can click on the BUY or RFQ button to purchase 200226111000541 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 200226111000541?
You can download the 200226111000541 datasheet or visit the WAGO website for support.
Who is the manufacturer of 200226111000541?
WAGO
