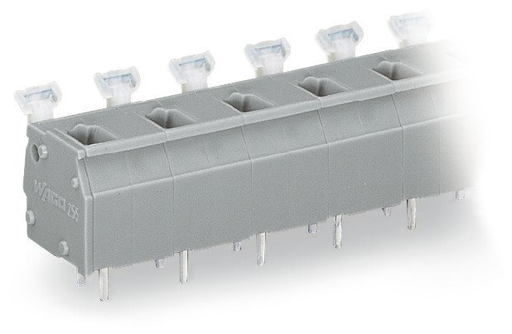

WAGO 255608 8-pole PCB Terminal Block
The WAGO 255-608 is a versatile 8-pole PCB terminal block designed for efficient and reliable electrical connections in various industrial applications. Its push-button actuation simplifies wiring, eliminating the need for tools and enabling quick adjustments. The CAGE CLAMP® connection ensures secure and consistent termination of conductors, while the compact design optimizes space utilization on printed circuit boards. This terminal block is ideal for applications requiring frequent adjustments or in-the-field wiring, such as control panels, automation systems, and power distribution networks. It supports a broad range of conductor sizes and offers robust electrical performance with a nominal voltage of 630V and a rated current of 24A.
WAGO 255608 8-pole PCB Terminal Block Specifications:
- Nominal Voltage (III/3): 630 V
- Rated Surge Voltage (III/3): 8 kV
- Rated Voltage (III/2): 1000 V
- Rated Surge Voltage (III/2): 8 kV
- Rated Voltage (II/2): 1000 V
- Rated Surge Voltage (II/2): 8 kV
- Rated Current: 24 A
- UL Rated Voltage (Use Group B): 300 V
- UL Rated Current (Use Group B): 15 A
- UL Rated Voltage (Use Group D): 300 V
- UL Rated Current (Use Group D): 10 A
- CSA Rated Voltage (Use Group B): 300 V
- CSA Rated Current (Use Group B): 15 A
- CSA Rated Voltage (Use Group D): 300 V
- CSA Rated Current (Use Group D): 10 A
- Solid Conductor Range: 0.08 … 2.5 mm² / 25 … 12 AWG
- Fine-Stranded Conductor Range: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor w/ Insulated Ferrule Range: 0.25 … 1.5 mm²
- Fine-Stranded Conductor w/ Uninsulated Ferrule Range: 0.25 … 1.5 mm²
- Strip Length: 5 … 6 mm / 0.2 … 0.24 inch
- Pin Spacing: 10/10.16 mm / 0.394/0.4 inch
- Width: 82.9 mm
- Height: 18.2 mm
- Height from Surface: 14.2 mm
- Depth: 18.3 mm
- Solder Pin Length: 4 mm
- Solder Pin Dimensions: 0.7 x 0.7 mm
- Drilled Hole Diameter: 1.1 mm (+0.1)
- Material Group: I
- Insulation Material: Polyamide 66 (PA 66)
- Flammability Class (UL94): V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E) Cu
- Contact Plating: tin-plated
- Fire Load: 0.262 MJ
- Weight: 13.6 g
- Limit Temperature Range: -60 … +105 °C
- Packaging Type: BOX
- Country of Origin: CH
- GTIN: 4044918662512
- Customs Tariff Number: 85369010000
Buy the 255-608 WAGO 8-pole PCB Terminal Block | myMectronic
Purchase the WAGO 255-608 PCB terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 255608?
You can click on the BUY or RFQ button to purchase 255608 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 255608?
You can download the 255608 datasheet or visit the WAGO website for support.
Who is the manufacturer of 255608?
WAGO
