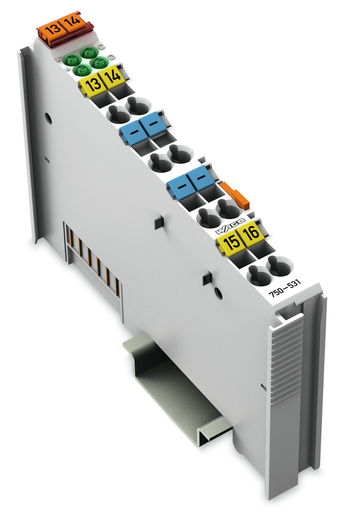

WAGO 750531 4-Channel Digital Output Module
The WAGO 750-531 digital output module provides four independent output channels for controlling actuators. It's designed for direct connection to four 2-wire actuators and offers short-circuit protection for enhanced reliability. Electrical isolation between the field and system levels ensures robust operation in industrial environments. This module is suitable for a wide range of applications including automation, process control, and machine building where reliable digital output signals are required.
WAGO 750531 4-Channel Digital Output Module Specifications:
- Number of digital outputs: 4
- Total number of channels (module): 4
- Signal type: Voltage
- Actuator connection: 4 x (2-wire)
- Output characteristic: high-side switching
- Output current per channel: 0.5 A
- Output current: short-circuit-protected
- Switching frequency (max.): 1 kHz
- Load type: Resistive, inductive, lamp load
- Short-circuit current: 1.7 A
- Reverse voltage protection: yes
- Inductive load switch-off energy dissipation (max.): 0.3 J
- Output (internal) data width (max.): 4 Bit
- Supply voltage (system): 5 VDC; via data contacts
- Power consumption (5 V system supply): 10 mA
- Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
- Power consumption, field supply (module with no external load): 30 mA
- Isolation: 500 V system/field
- Indicators: LED (A-D) green: Status DO 1 … DO 4
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
- Current carrying capacity (power jumper contacts): 10 A
- Connection technology inputs/outputs: 8 x CAGE CLAMP®
- Connection type: Inputs/Outputs
- Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Width: 12 mm / 0.472 inch
- Height: 100 mm / 3.937 inch
- Depth: 69.8 mm / 2.748 inch
- Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch
- Color: light gray
- Housing material: Polycarbonate; polyamide 6.6
- Fire load: 0.951 MJ
- Weight: 49.4 g
- Conformity marking: CE
- Surrounding air temperature (operation): 0 … 55 °C
- Surrounding air temperature (storage): -40 … 85 °C
- Protection type: IP20
- Pollution degree: 2 per IEC 61131-2
- Operating altitude: 0 … 2000 m
- Mounting position: horizontal (standing/lying); vertical
- Relative humidity: 95 %
- Vibration resistance: 4g per IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: per EN 61000-6-2, marine applications
- EMC emission of interference: per EN 61000-6-4, marine applications
- Product Group: 15 (Remote I/O)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454513733
- Customs tariff number: 85371098990
