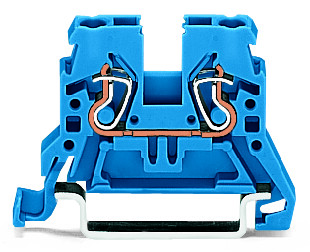

WAGO 870904 2-Conductor Terminal Block
The WAGO 870-904 is a robust and reliable 2-conductor through terminal block ideal for a variety of industrial applications. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, it utilizes WAGO’s innovative CAGE CLAMP® connection technology for secure and easy wire termination. This terminal block is specifically suitable for Ex i applications, ensuring safety in hazardous environments. With a rated voltage of 500V and a rated current of 24A, it provides dependable performance in demanding electrical systems. The blue polyamide 66 (PA 66) housing offers excellent insulation and durability.
WAGO 870904 2-Conductor Terminal Block Specifications:
- Rated Voltage (III / 3): 500 V
- Rated Impulse Voltage (III / 3): 6 kV
- Rated Current: 24 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip Length: 6 … 7 mm / 0.24 … 0.28 inch
- Total Number of Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Type of Wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from Upper-Edge of DIN-35 Rail: 27.5 mm / 1.083 inch
- Depth: 44.5 mm / 1.752 inch
- Design: horizontal
- Type of Mounting: DIN-35 rail
- Marking Level: Side marking
- Color: blue
- Insulating Material: Polyamide 66 (PA 66)
- Fire Load: 0.08 MJ
- Weight: 4.313 g
- Country of Origin: DE
- GTIN: 4044918478380
- Customs Tariff No: 85369010000
Buy the 870-904 WAGO 2-Conductor Terminal Block | myMectronic
Purchase the WAGO 870-904 terminal block securely and conveniently online.
Buy Now
