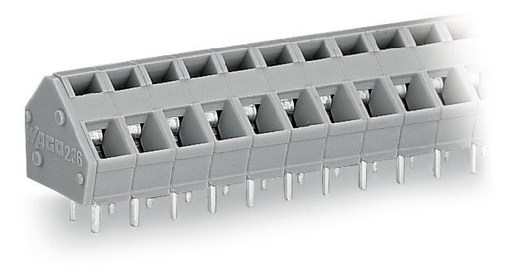

WAGO 236408000009999950 8-pole PCB Terminal Strip
The WAGO 236-408/000-009/999-950 is an 8-pole PCB terminal strip specifically engineered for Ex e II applications, ensuring safety and reliability in hazardous environments. It utilizes WAGO's innovative CAGE CLAMP® connection technology, allowing for parallel or perpendicular screwdriver actuation and accommodating a wide range of conductor sizes. The 45° connection angle provides flexibility in wiring options, making it suitable for diverse industrial applications. This terminal strip is ideal for use in control cabinets and machinery where safety and efficient wiring are paramount.
WAGO 236408000009999950 8-pole PCB Terminal Strip Specifications:
- No. of Poles: 8
- Total number of connection points: 8
- Total number of potentials: 8
- Color: light gray
- Nominal current [A]: 16
- Rated voltage EN (Ex e II) [V]: 176
- Nominal current (Ex e II) [A]: 16
- Ratings according to 4: ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
- Connection technology (1): CAGE CLAMP®
- Conductor type (1): solid
- Cross section from (1) [mm²]: 0.08
- Cross section up to (1) [mm²]: 2.5
- Cross section from (1) [AWG]: 28
- Cross section up to (1) [AWG]: 12
- Conductor type (2): fine-stranded
- Cross section from (2) [mm²]: 0.08
- Cross section up to (2) [mm²]: 2.5
- Conductor type (3): fine-stranded (with insulated ferrule)
- Cross section from (3) [mm²]: 0.25
- Cross section up to (3) [mm²]: 1.5
- Conductor type (4): fine-stranded (with uninsulated ferrule)
- Cross section from (4) [mm²]: 0.25
- Cross section up to (4) [mm²]: 1.5
- Stripped length from (1) [mm]: 5
- Stripped length up to (1) [mm]: 6
- Strip length from [inch] [in]: 0.2
- Strip length up to [inch] [in]: 0.24
- Stripped length (1) [in]: 0.22
- Conductor entry angle to the PCB (degrees) [°]: 45
- Type of wiring: Front-/Side-entry wiring
- Solder pin length [mm]: 4
- Solder pin width A [mm]: 0.7
- Solder pin width B [mm]: 0.7
- Drilled hole diameter [mm]: 1.1
- Tolerance of drilled hole diameter [mm]: +0.1
- Material group: I
- Insulating material: Polyamide 6.6 (PA 6.6)
- Flammability rating per UL 94: V0
- Lower limit temperature [C]: -60
- Upper temperature limit [C]: 105
- Clamping spring material: Chrome-nickel spring steel (CrNi)
- Contact material: Electrolytic copper (Ecu)
- Contact plating: tin-plated
- Fire load [MJ]: 0.1
- Weight [g]: 7.132
- Width [mm]: 42.3
- Width [in]: 1.665
- Height [mm]: 13
- Height [in]: 0.512
- Length [mm]: 14
- Length [in]: 0.551
- Pin spacing from [mm]: 5
- Pin spacing up to [mm]: 5.08
- Pin spacing from [in]: 0.197
- Pin spacing up to [in]: 0.2
