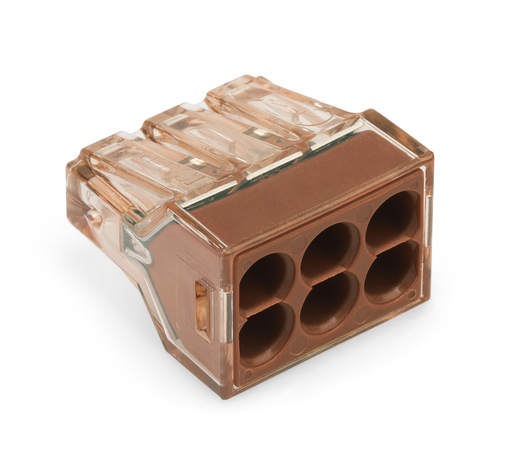

WAGO 773606 Push Wire Connector
The WAGO 773-606 Push WIRE® connector is a versatile solution for connecting solid conductors in junction boxes. Designed for conductors up to 4 mm², this 6-conductor connector features a robust brown clear housing and cover. Its push-in connection technology simplifies installation, while the spring clamp mechanism ensures secure and reliable connections. Suitable for a wide range of industrial applications, the 773-606 offers efficient and safe electrical connections. For aluminum conductors, the use of WAGO “Alu-Plus” Contact Paste is recommended to prevent oxidation and corrosion, ensuring long-term performance and reliability.
WAGO 773606 Push Wire Connector Specifications:
- Nominal Voltage (II/2): 400 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 32 A
- Connection Technology: PUSH WIRE®
- Actuation Type: Push-in
- Connectable Conductor Materials: Copper, Aluminum
- Strip Length: 12 mm / 0.47 inch
- Total Number of Connection Points: 6
- Total Number of Potentials: 1
- Wiring Type: Side-entry wiring
- Width: 18.8 mm / 0.74 inch
- Height: 13.1 mm / 0.516 inch
- Depth: 19.5 mm / 0.768 inch
- Cover Color: brown
- Flammability Class per UL94: V2
- Fire Load: 0.029 MJ
- Weight: 3.5 g
- Surrounding Air Temperature (Operation): 60 °C
- Continuous Operating Temperature: 105 °C
- Product Group: 7 (Push Wire Conn.)
- Packaging Type: BOX
- Country of Origin: CN
- GTIN: 4055143088671
- Customs Tariff Number: 85369010000
- Rated Current (2.5 mm²): 16 A
- Rated Current (4 mm²): 22 A
