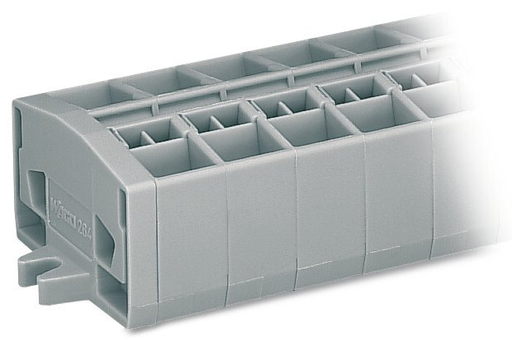

WAGO 264206 6-pole Terminal Strip
The WAGO 264-206 is a 6-pole terminal strip designed for reliable power distribution in industrial environments. It utilizes WAGO’s innovative CAGE CLAMP® connection technology, ensuring secure and vibration-resistant connections. This terminal strip is suitable for screw or similar mounting types and is rated for a voltage up to 800V and a current of 24A. The horizontal design and fixing flanges provide stability, while the center marking simplifies identification. It is a versatile solution for a wide range of applications, including control cabinets, machinery, and automation systems.
WAGO 264206 6-pole Terminal Strip Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 6
- Total number of connection points: 24
- Total number of potentials: 6
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): 12 AWG: THHN, THWN
- Width: 76 mm / 2.992 inch
- Height from the surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Module width: 10 mm / 0.394 inch
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Center marking
- Color: gray
- Fire load: 0.742 MJ
- Weight: 43.1 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918418706
- Customs Tariff No.: 85369010000
