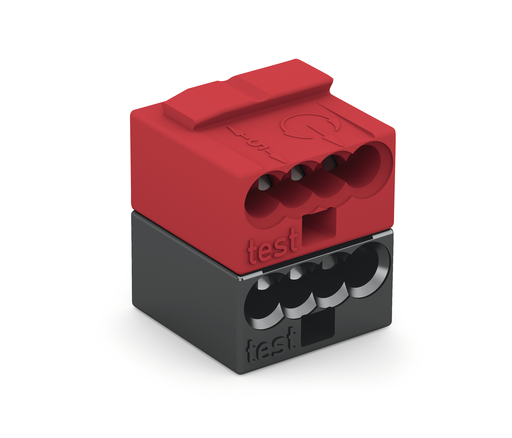

WAGO 243211 EIB Connector 4-Conductor
The WAGO 243-211 connector is a compact, 4-conductor solution specifically engineered for EIB applications. Its key feature is the PUSH WIRE® simple push-in termination, which simplifies conductor connection and allows for device replacement without interrupting the EIB bus. This connector is suitable for a range of industrial environments where reliable and efficient data transmission is crucial. It supports a rated voltage of 100V and a nominal current of 6A, making it a versatile choice for various control and automation systems.
WAGO 243211 EIB Connector 4-Conductor Specifications:
- Supplier: WAGO
- Item no.: 243-211
- GTIN / EAN: 4044918442831
- Content: 1
- Order amount: 50
- Total number of connection points: 8
- Total number of potentials: 2
- Color: dark gray/red
- Overvoltage category EN 1: III
- Pollution degree (1): 2
- Rated voltage EN (1) [V]: 100
- Nominal current [A]: 6
- Overvoltage category EN 2: II
- Degree of pollution (2): 2
- Overvoltage category EN 3: III
- Degree of pollution (3): 3
- Rated voltage EN (3) [V]: 250
- Rated surge voltage (3) [kV]: 4
- Nominal current (3) [A]: 6
- Diameter from (1) [mm]: 0.6
- Diameter up to (1) [mm]: 0.8
- Cross section from (1) [AWG]: 22
- Cross section up to (1) [AWG]: 20
- Cross section up to (2) [AWG]: 18
- Diameter up to (2) [mm]: 1
- Stripped length from (1) [mm]: 5
- Stripped length up to (1) [mm]: 6
- Strip length from [inch] [in]: 0.2
- Strip length up to [inch] [in]: 0.24
- Stripped length (1) [in]: 0.22
- Type of wiring: Side-entry wiring
- Material group: I
- Insulating material: Polyamide 6.6 (PA 6.6)
- Flammability rating per UL 94: V0
- Lower limit temperature [C]: -60
- Upper temperature limit [C]: 105
- Clamping spring material: Chrome-nickel spring steel (CrNi)
- Contact material: Electrolytic copper (Ecu)
- Contact plating: tin-plated
- Fire load [MJ]: 0.024
- Weight [g]: 1.6
- Width [mm]: 10
- Width [in]: 0.394
- Height [mm]: 11.5
- Height [in]: 0.453
- Length [mm]: 10
- Length [in]: 0.394
- CSA Registration: 18677-31
- Voltage [V]: 150
- Current [A]: 7
- Cross section [mm², AWG]: 22-20
