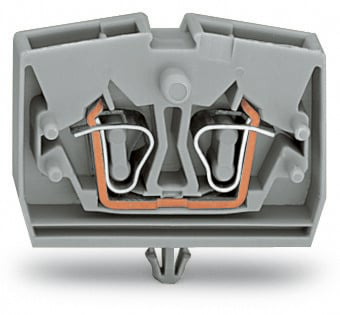

WAGO 264311 2-conductor terminal block
The WAGO 264-311 is a 2-conductor terminal block ideal for various industrial applications requiring secure and reliable connections. It utilizes WAGO’s innovative CAGE CLAMP® connection technology, ensuring a tight and consistent connection for conductors. The terminal block is designed for horizontal mounting with a snap-in foot and is suitable for plate thicknesses between 0.6 and 1.2 mm. Its compact size and robust construction make it a versatile choice for control cabinets, machinery, and automation systems.
WAGO 264311 2-conductor terminal block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Connection points: 2
- Potentials: 1
- Levels: 1
- Wiring type: Front-entry wiring
- Width: 6 mm / 0.236 inch
- Height from surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Design: horizontal
- Mounting type: Snap-in mounting foot
- Marking level: Center marking
- Color: gray
- Fire load: 0.075 MJ
- Weight: 3.9 g
- Product Group: 9 (Std. Chassis Mt. Blocks)
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918415194
- Customs Tariff No.: 85369010000
