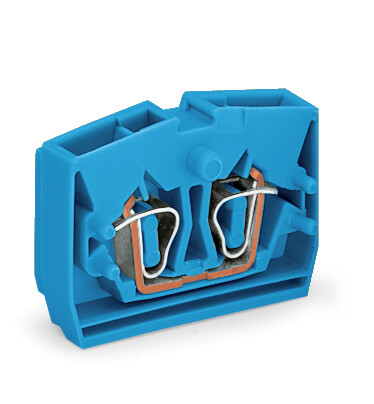

WAGO 264324 2-conductor terminal block
The WAGO 264-324 is a 2-conductor center terminal block specifically designed for use in Ex i (Intrinsic Safety) applications. It utilizes WAGO’s innovative CAGE CLAMP® connection technology, ensuring reliable and secure connections for conductors ranging from 0.08 to 2.5 mm². This terminal block is rated for a nominal voltage of 800V (III/3) and a current of 24A. Its compact design (6mm width, 22.1mm height, 32mm depth) and horizontal mounting type make it suitable for various industrial control and power distribution panels. The blue color provides easy identification, and the polyamide (PA66) insulation material offers excellent electrical and mechanical properties. It is compliant with various international standards and approvals, including CB, CCA, CSA, ABS, BV, DNV GL, and Lloyds Register.
WAGO 264324 2-conductor terminal block Specifications:
- Nominal Voltage: 800 V
- Rated Surge Voltage: 8 kV
- Rated Current: 24 A
- Connection Technology: CAGE CLAMP®
- Solid Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Width: 6 mm / 0.236 inch
- Height from Surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Design: horizontal type
- Mounting Type: Mounting flange
- Color: blue
- Insulation Material: Polyamide (PA66)
- Flammability Class: V0
- Fire Load: 0.074 MJ
- Weight: 3.8 g
- Packaging Type: BOX
- Country of Origin: CH
- GTIN: 4044918415293
- Customs Tariff Number: 85369010000
