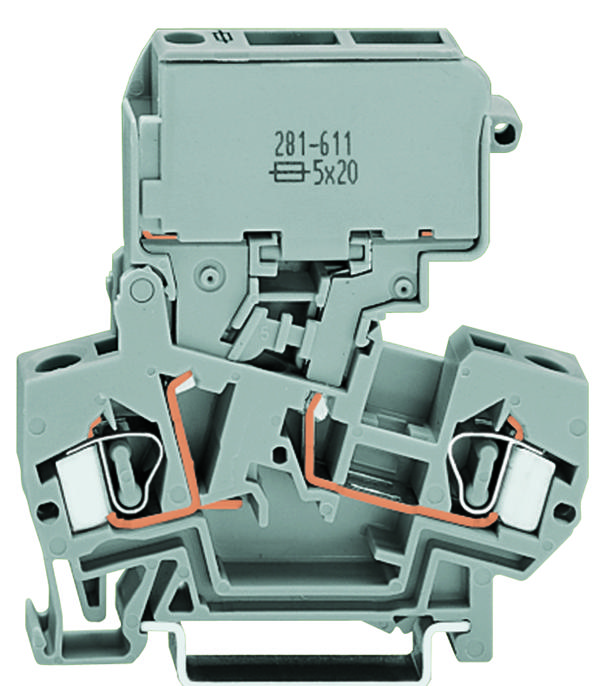

WAGO 281611281541 Fused Disconnect Terminal Block
The WAGO 281-611/281-541 is a fused disconnect terminal block designed for miniature metric fuses (5 x 20 mm). It provides a convenient way to integrate fuse protection and disconnection capabilities into your electrical circuits. The integrated LED indicator clearly signals a blown fuse, enhancing safety and simplifying troubleshooting. The CAGE CLAMP® connection ensures reliable and vibration-resistant connections. This terminal block is ideal for industrial control panels, power distribution systems, and other applications where circuit protection and isolation are critical.
WAGO 281611281541 Fused Disconnect Terminal Block Specifications:
- Product Description: Fused disconnect terminal block with pivotable fuse holder for miniature metric fuses 5 x 20 mm
- Voltage: 800 V
- Current Intensity EN: 10 A
- Current Intensity EN (Blown Fuse): 6.3 A
- Residual Current (Blown Fuse - LED): 6 mA
- Residual Current (Blown Fuse - Neon Lamp): < 0.4 mA
- Cross Section (mm²): 0.08 - 4 mm²
- Cross Section (AWG): 28 - 12 AWG
- Connection Method: CAGE CLAMP®CONNECTION
- Measured Shock Voltage: 8 kV
- Pollution Degree: 3
- Weight: 17.81 g
- Color: grey
- Wiring Type: Front-entry
- Number of Connection Points: 2
- Number of Potentials: 2
- Height: 60 mm
- Width: 8 mm
- Depth: 9 mm
- Strip Length From: 10 mm
- Strip Length To: 0.37 in
- Approval: ABS 05-HG476175/1-PDA, CCA NL5470, CSA 154112-1505034, KEMA 2036066.01, PRS TE/1718/880590/08, UR E45172
