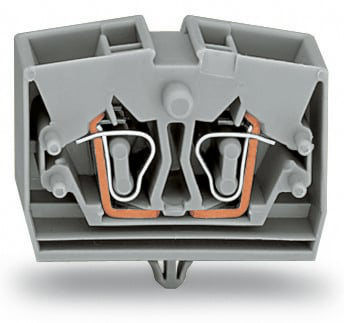

WAGO 264341 4-conductor Terminal Block
The WAGO 264-341 is a 4-conductor terminal block designed for reliable electrical connections in various industrial applications. It utilizes WAGO’s innovative CAGE CLAMP® connection technology, ensuring a secure and consistent connection for conductors ranging from 0.08 to 2.5 mm². The terminal block is suitable for plate thicknesses between 0.6 and 1.2 mm and features a snap-in mounting foot for easy installation. It is rated for 800V and 24A, making it suitable for demanding environments. The clear center marking simplifies identification and wiring processes, contributing to efficient and error-free installations.
WAGO 264341 4-conductor Terminal Block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Conductor cross-section: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 10 mm / 0.394 inch
- Height from the surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Design: horizontal
- Mounting type: Snap-in mounting foot
- Marking level: Center marking
- Color: gray
- Fire load: 0.112 MJ
- Weight: 6.4 g
- Product Group: 9 (Std. Chassis Mt. Blocks)
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918414661
- Customs Tariff No.: 85369010000
