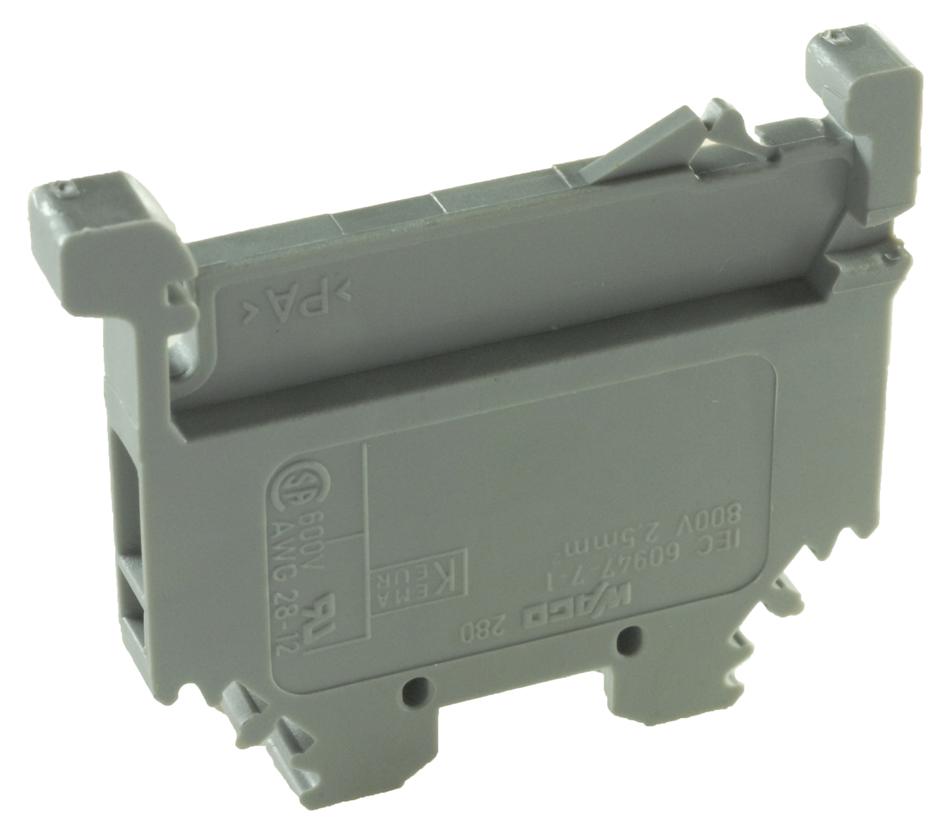

WAGO 280101 2-Conductor Through Terminal Block
The WAGO 280-101 is a rail-mounted terminal block designed for reliable and efficient electrical connections. It utilizes a cage clamp connection mechanism, ensuring secure and vibration-resistant termination of wires. This terminal block is ideal for applications in control cabinets, automation systems, and power distribution panels where space is limited and robust connections are required. It supports a wide range of wire gauges and voltage levels, making it a versatile solution for various industrial needs.
WAGO 280101 2-Conductor Through Terminal Block Specifications:
- Product Description: 2-Conductor Through Terminal Block; Lateral Marking; for DIN 35 rail; Side-Entry; Cage Clamp®Connection; Horizontal Type
- Packing Unit: 100 pieces
- Cross Section From [mm²]: 0,08 mm²
- Cross Section To [mm²]: 2,5 mm²
- Cross Section From [AWG]: 28 AWG
- Cross Section To [AWG]: 12 AWG
- Connection Method: CAGE CLAMP®CONNECTION
- Measured Voltage EN: 800 V
- Measured Shock Voltage: 8 kV
- Pollution Degree: 3
- Current Intensity EN: 24 A
- Weight: 3,935 g
- Color: grey
- Wiring Type: Side-entry
- No. of Connection Points: 2
- No. of Potentials: 1
- Height: 30,5 mm
- Height 1: 1,2 in
- Width: 5 mm
- Width 1: 0,197 in
- Depth: 42,5 mm
- Depth 1: 1,67 in
- Strip Length From: 8 mm
- Strip Length To: 9 mm
- Strip Length 1: 0,33 in
- Admission Office ABS: 05-HG476175/1-PDA
- Approval No. BBJ: B/12/700/03
- Approval No. BV: 07436/Co
- Approval No. CCA: NL5855
- Approval No. CSA: 154112-1536071
- Approval No. DEMKO: 78571
- Approval No. Dep.MaE: CS4865N
- Approval No. DNV: E7570
- Approval No. GL: 17295-00HH
- Approval No. KEMA: 2082859.07
- Approval No. KR: HMB05880-EL001
- Approval No. LR: 91/20112(E5)
- Approval No. NEMKO: M52726/01
- Approval No. PRS: TE/1718/880590/08
- Approval No. RMR: 11130002
- Approval No. SABS: ED751/8188
- Approval No. SABS-EX: e741/85712/W491
- Approval No. UL: E45172
- Approval No. UR: E45172
