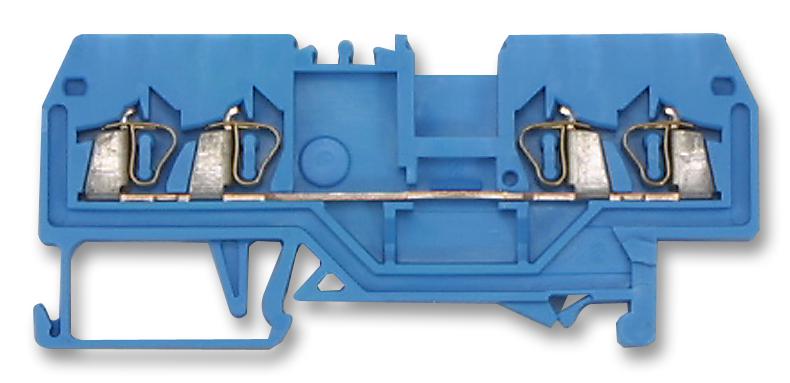

WAGO 280834 4-conductor Through Terminal Block
The WAGO 280-834 is a robust and reliable 4-conductor through terminal block specifically designed for rail-mounted applications, including those requiring Ex I suitability. Utilizing WAGO’s innovative CAGE CLAMP® connection technology, this terminal block ensures secure and consistent connections. It is rated for voltages up to 800V and currents up to 24A, making it suitable for a wide range of industrial applications. The compact dimensions (28mm height, 5mm width, 75mm depth) allow for efficient space utilization on DIN rails. It is approved by various agencies including ABS, BV, and KEMA, ensuring compliance with relevant industry standards.
WAGO 280834 4-conductor Through Terminal Block Specifications:
- product_description: 4-conductor through terminal block
- suitable_for: Ex I applications
- packing_unit: 100 pieces
- cross_section_mm2: 0.08 - 2.5 mm²
- cross_section_awg: 28 - 12 AWG
- connection_method: CAGE CLAMP® CONNECTION
- measured_voltage_en: 800 V
- measured_shock_voltage: 8 kV
- pollution_degree: 3
- current_intensity_en: 20 A
- weight: 9.016 g
- color: blue
- wiring_type: Front-entry
- no_of_connection_points: 4
- no_of_potentials: 1
- height: 28 mm
- height_in: 1.1 in
- width: 5 mm
- width_in: 0.197 in
- depth: 75 mm
- depth_in: 2.95 in
- strip_length_from: 8 mm
- strip_length_to: 9 mm
- strip_length_in: 0.33 in
- mounting: TS 35
- admission_office_abs: 05-HG476175/3-PDA
- admission_office_bv: 07436/C0
- admission_office_cca: NL5855
- admission_office_csa: 154112-1536071
- admission_office_dnv: E-10423
- admission_office_gl: 17295-00HH
- admission_office_kema: 2082859.07
- admission_office_lr: 91/20112(E6)
- admission_office_prs: TE/1718/880590/08
- admission_office_rmr: 11130002
- admission_office_ur: E45172
