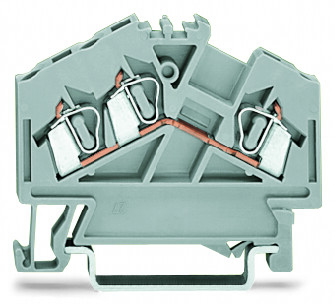

WAGO 280654 3-conductor terminal block
The WAGO 280-654 is a versatile 3-conductor through terminal block ideal for various industrial applications. Designed for DIN-rail mounting (35 x 15 and 35 x 7.5), it features WAGO’s innovative CAGE CLAMP® spring pressure connection technology, ensuring secure and reliable connections. The terminal block is suitable for solid aluminum conductors when used with WAGO “Alu-Plus” Contact Paste, which prevents oxidation and corrosion. It is rated for a voltage of 800V and a current of 24A, making it suitable for a wide range of electrical circuits. The orange color and center marking aid in identification and organization within electrical panels.
WAGO 280654 3-conductor terminal block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 3
- Total number of potentials: 1
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 36.5 mm / 1.437 inch
- Depth: 50.5 mm / 1.988 inch
- Design: angled
- Type of mounting: DIN-35 rail
- Color: orange
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.121 MJ
- Weight: 6.7 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918325936
- Customs Tariff No.: 85369010000
