WAGO 280655281410 4-conductor Terminal Block

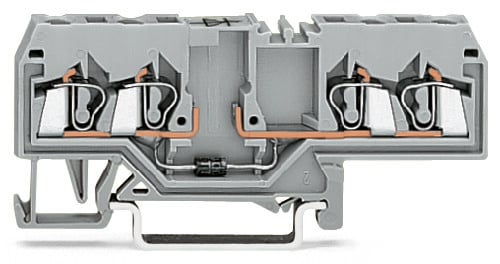

The WAGO 280-655/281-410 terminal block is a versatile solution for connecting multiple conductors in industrial applications. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, it features a 4-conductor configuration and incorporates a diode 1N4007. The CAGE CLAMP® spring pressure connection technology ensures reliable and vibration-resistant connections. For aluminum conductors, the use of WAGO “Alu-Plus” Contact Paste is recommended to prevent oxidation and corrosion, allowing for safe and efficient power transmission. This terminal block is ideal for control panels, machinery, and other electrical distribution systems.
WAGO 280655281410 4-conductor Terminal Block Specifications:
- Nominal Voltage: 250 V
- Reverse Voltage: 1,000 V
- Rated Current: 0.5 A
- Connection Technology: CAGE CLAMP®
- Connectable Conductor Materials: Copper, Aluminum
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-Stranded Conductor Size: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Number of Connection Points: 4
- Number of Potentials: 1
- Width: 5 mm / 0.197 inch
- Height: 75 mm / 2.953 inch
- Design: horizontal type
- Mounting Type: DIN-35 rail
- Insulation Material: Polyamide (PA66)
- Fire Load: 0.16 MJ
- Weight: 9.4 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging Type: BOX
- Country of Origin: CN
- GTIN: 4050821275435
- Customs Tariff Number: 85369010000
- Ratings per IEC/EN: IEC/EN 60947-7-1
- Alu-Plus Contact Paste Advantages: Destroys oxide film, prevents oxidation, prevents corrosion, long-term protection
