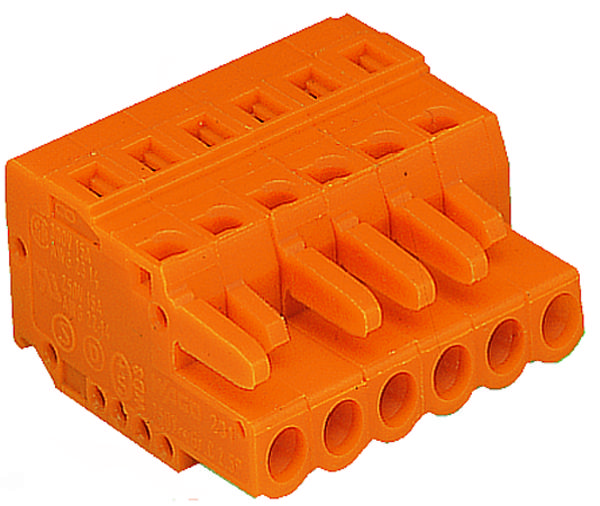

WAGO 231308026000 6 Pole Female Connector
The WAGO 231-308/026-000 is a 6-pole female connector designed for use in multi-connection systems. It utilizes WAGO’s innovative CAGE CLAMP® connection technology, ensuring a secure and vibration-resistant connection. The integrated fixing flanges provide additional stability when mounted, while the coding fingers prevent incorrect connections. This connector is ideal for applications requiring reliable power distribution and signal transmission in industrial automation, control panels, and machinery. It supports a wide range of wire gauges and voltages, making it versatile for diverse electrical projects.
WAGO 231308026000 6 Pole Female Connector Specifications:
- Product Description: FEMALE PLUG; 6 POLE; PIN SPACING 5.08 MM / 0.2 IN; WITH CODIG FINGERS; WITH INTEGRATED FIXING FLANGES; CAGE CLAMP®CONNECTION
- Packing Unit: 50 pieces
- Product Group: 3 (Multi Conn. System)
- Pin Spacing: 5.08 mm / 0.2 in
- Pole Count: 6
- Cross Section Range (mm²): 0.08 - 2.5
- Cross Section Range (AWG): 28 - 12 AWG
- Connection Method: CAGE CLAMP®CONNECTION
- Measured Voltage (EN): 250 V
- Measured Shock Voltage: 4 kV
- Pollution Degree: 3
- Current Intensity (EN): 16 A
- Weight: 10.98 g
- Color: orange
- No. of Connection Points: 6
- No. of Potentials: 6
- Height: 14.3 mm / 0.563 in
- Width: 31.98 mm / 1.259 in
- Depth: 26.45 mm / 1.041 in
- Strip Length: 8 - 9 mm / 0.33 in
- BV Approval No.: 11915/A0
- CCA Approval: 5764
- CSA Approval: 154112-1466354
- DEMKO Approval: 88126
- KEMA Approval: 2083746.02
- KR Approval: HMB05880-EL003
- NEMKO Approval: P94101840
- UR Approval: E45171
- UR Approval 2: E45172
