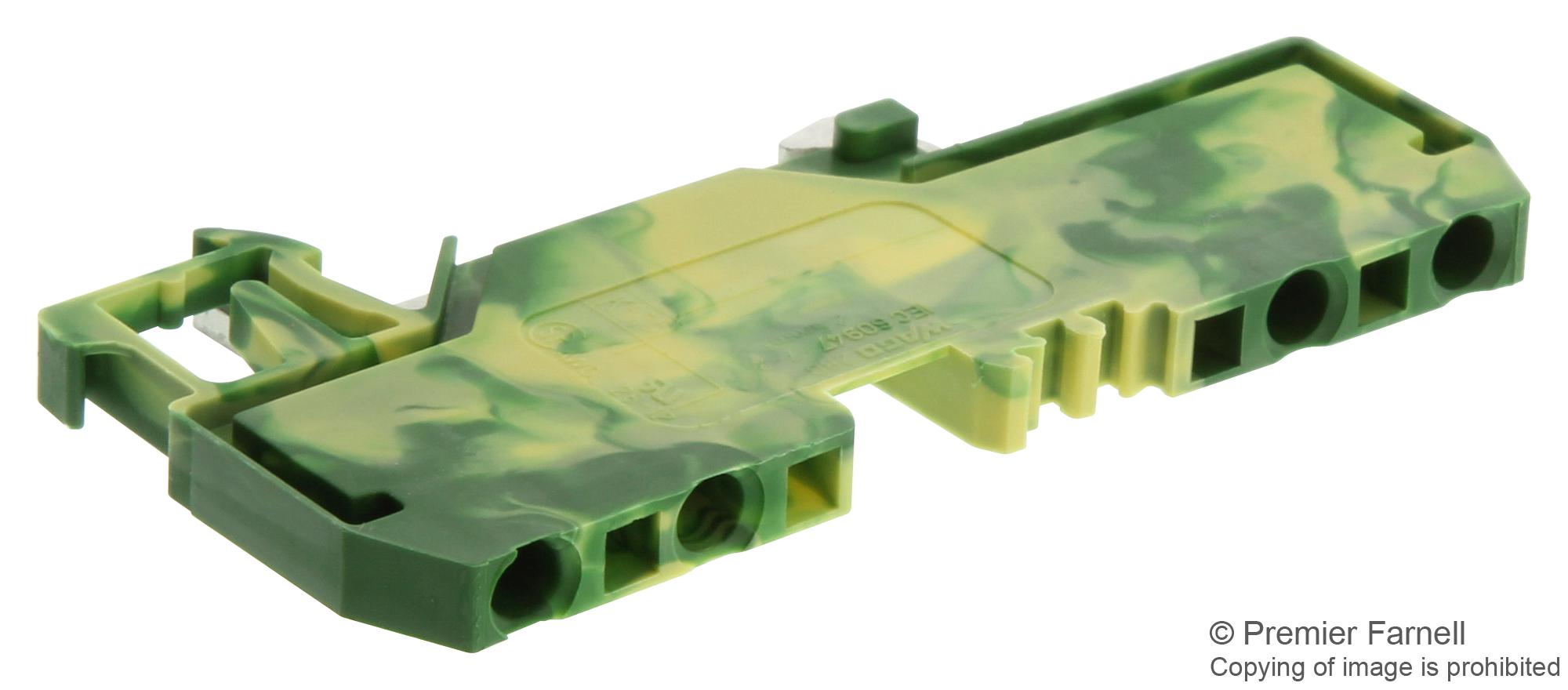

WAGO 280677 4-conductor Ground Terminal Block
The WAGO 280-677 is a robust and reliable 4-conductor ground terminal block designed for secure and efficient connections in industrial applications. It is specifically engineered for mounting on DIN rails (35 x 15 and 35 x 7.5) and utilizes WAGO’s innovative CAGE CLAMP® spring pressure connection technology, ensuring a gas-tight connection and minimizing maintenance. For aluminum conductors, the use of WAGO “Alu-Plus” Contact Paste is recommended to prevent oxidation and corrosion, ensuring long-term reliability. This terminal block is ideal for applications requiring a secure and organized grounding solution.
WAGO 280677 4-conductor Ground Terminal Block Specifications:
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 28 mm / 1.102 inch
- Depth: 75 mm / 2.953 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Color: green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.132 MJ
- Weight: 12.8 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454100124
- Customs Tariff No.: 85369010000
Buy the 280-677 WAGO 4-conductor Ground Terminal Block | myMectronic
Purchase the WAGO 280-677 ground terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 280677?
You can click on the BUY or RFQ button to purchase 280677 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 280677?
You can download the 280677 datasheet or visit the WAGO website for support.
Who is the manufacturer of 280677?
WAGO
