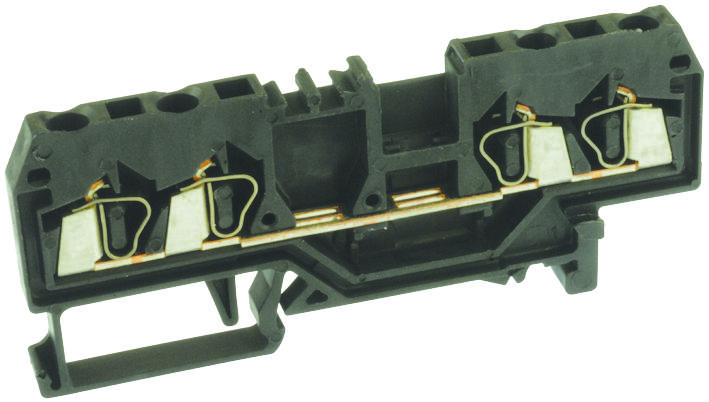

WAGO 280831 4-conductor terminal block
The WAGO 280-831 is a robust and reliable 4-conductor through terminal block ideal for use in industrial control and power distribution systems. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this terminal block utilizes WAGO’s innovative CAGE CLAMP® spring pressure connection technology, ensuring a secure and vibration-resistant connection. It is suitable for solid aluminum conductors when used with WAGO “Alu-Plus” Contact Paste, which prevents oxidation and corrosion. The terminal block is rated for 20A and 800V, making it suitable for a wide range of applications. Its center marking simplifies identification and wiring processes.
WAGO 280831 4-conductor terminal block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 20 A
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 28 mm / 1.102 inch
- Depth: 75 mm / 2.953 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Color: black
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.141 MJ
- Weight: 9.2 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918311229
- Customs Tariff No.: 85369010000
Buy the 280-831 WAGO 4-conductor terminal block | myMectronic
Purchase the WAGO 280-831 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 280831?
You can click on the BUY or RFQ button to purchase 280831 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 280831?
You can download the 280831 datasheet or visit the WAGO website for support.
Who is the manufacturer of 280831?
WAGO
