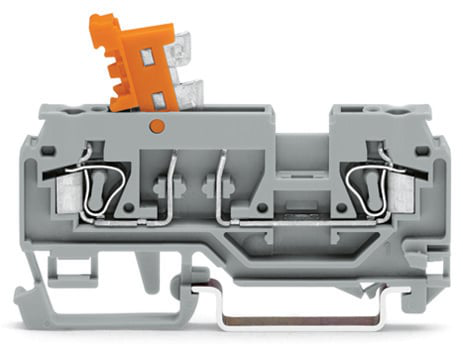

WAGO 280879 2-conductor disconnect terminal block
The WAGO 280-879 is a versatile 2-conductor disconnect/test terminal block ideal for applications requiring circuit isolation and testing. It's designed for DIN-rail mounting (35 x 15 and 35 x 7.5) and utilizes the CAGE CLAMP® spring pressure connection technology. The pivoting knife disconnect allows for easy disconnection and testing, while the test port facilitates convenient circuit verification. For aluminum conductors, the use of WAGO “Alu-Plus” Contact Paste is recommended to ensure reliable termination and prevent corrosion. This terminal block is a reliable solution for various industrial and commercial applications.
WAGO 280879 2-conductor disconnect terminal block Specifications:
- Color: orange
- Nominal Voltage (III/3): 400 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 16 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper, Aluminum
- Solid Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Total Number of Connection Points: 2
- Total Number of Potentials: 2
- Number of Levels: 1
- Wiring Type: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from Upper-Edge of DIN-Rail: 28.5 mm / 1.122 inch
- Depth: 69.5 mm / 2.736 inch
- Design: horizontal type
- Mounting Type: DIN-35 rail
- Insulation Material: Polyamide 66 (PA 66)
- Fire Load: 0.148 MJ
- Weight: 8.6 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging Type: BOX
- Country of Origin: IN
- GTIN: 4050821014584
- Customs Tariff Number: 85365080900
- Aluminum Conductor Termination: Requires WAGO ‘Alu-Plus’ Contact Paste
