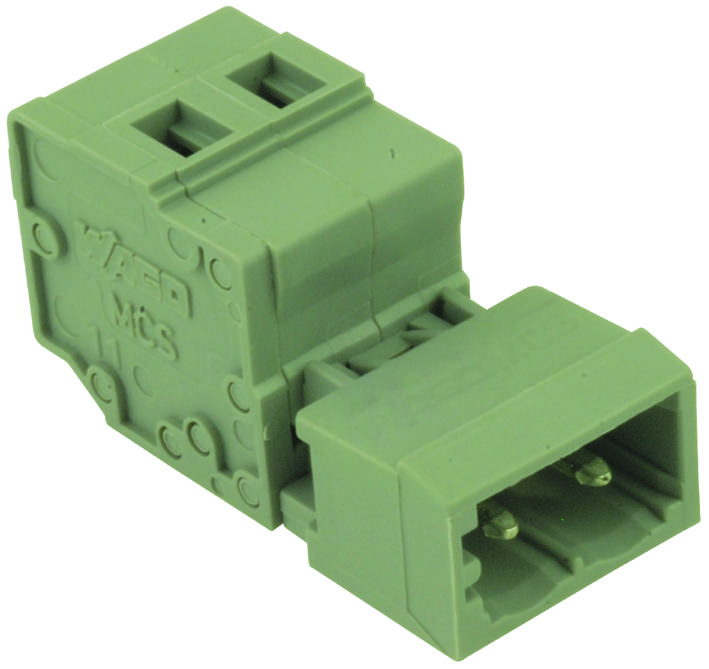

WAGO 231602 2.5mm Connector
The WAGO 231-602 is a versatile 2-pole male connector within the MULTI CONNECTION SYSTEM. It offers a universal connection solution for all conductor types, utilizing the innovative CAGE CLAMP actuation for simplified vertical and horizontal wiring. This connector is ideal for wire-to-wire and board-to-wire connections in a variety of industrial applications. Available with snap-in mounting feet or flanges, it provides flexibility for panel or through-panel mounting. Safety features include coding fingers and adherence to relevant standards like IEC 61984. It is designed for reliable performance in demanding environments.
WAGO 231602 2.5mm Connector Specifications:
- Material: Polyamide 66 (PA 66)
- Flammability Class: V0
- Rated Voltage (III/3): 320 V
- Rated Surge Voltage (III/3): 4 kV
- Rated Voltage (II/2): 630 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 12 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 15 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage UL (1977): 600 V
- Rated Current UL (1977): 15 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 15 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Connection Technology: CAGE CLAMP®
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor w/ Ferrule Size: 0.25 … 1.5 mm²
- Fine-Stranded Conductor w/ Uninsulated Ferrule Size: 0.25 … 2.5 mm²
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Pin Spacing: 5 mm / 0.197 inch
- Width: 13.2 mm / 0.52 inch
- Height: 14.3 mm / 0.563 inch
- Depth: 27.5 mm / 1.083 inch
- Contact Material: Electrolytic Copper (E) Cu
- Contact Plating: Tin-plated
- Fire Load: 0.065 MJ
- Weight: 3.4 g
- Limit Temperature Range: -60 … +100 °C
- Customs Tariff Number: 85366990990
