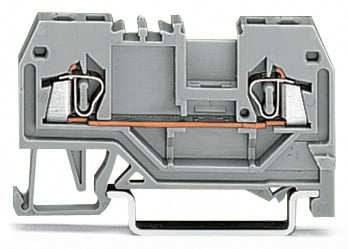

WAGO 279901 2-Conductor Through Terminal Block
The WAGO 279-901 is a robust and reliable 2-conductor through terminal block ideal for use in industrial control panels and electrical distribution systems. Its CAGE CLAMP® connection ensures a secure and vibration-resistant connection, simplifying installation and maintenance. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this terminal block offers a compact and space-saving solution for connecting multiple circuits. The center marking facilitates easy identification and organization of wiring, contributing to efficient and error-free installations. Constructed from durable polyamide 66 (PA 66), the 279-901 is built to withstand demanding environments and provide long-lasting performance.
WAGO 279901 2-Conductor Through Terminal Block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 18 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 4 mm / 0.157 inch
- Height from upper-edge of DIN-35 rail: 27 mm / 1.063 inch
- Depth: 52 mm / 2.047 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.086 MJ
- Weight: 4.3 g
- Country of origin: DE
- GTIN: 4044918524506
- Customs Tariff No.: 85369010000
