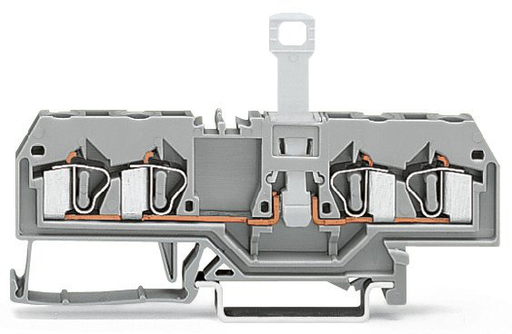

WAGO 281659 4-conductor disconnect terminal block
The WAGO 281-659 disconnect terminal block provides a reliable and secure connection for aluminum and copper conductors. Utilizing WAGO’s CAGE CLAMP® spring pressure connection technology, this terminal block simplifies wiring and ensures long-term stability. It is specifically designed for use on DIN rails, making it ideal for industrial control panels and distribution boards. For aluminum conductors, the use of WAGO’s “Alu-Plus” contact paste is recommended to prevent oxidation and ensure optimal conductivity. This terminal block is a crucial component in electrical systems requiring safe and efficient power distribution.
WAGO 281659 4-conductor disconnect terminal block Specifications:
- Rated voltage (III / 3): 400 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 10 A
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 9 … 10 mm / 0.35 … 0.39 inch
- Total number of connection points: 4
- Total number of potentials: 2
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 6 mm / 0.236 inch
- Height from upper-edge of DIN-35 rail: 53.5 mm / 2.106 inch
- Depth: 86 mm / 3.386 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.218 MJ
- Weight: 13.3 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918837781
- Customs Tariff No.: 85365080900
Buy the 281-659 WAGO 4-conductor disconnect terminal block | myMectronic
Purchase the WAGO 281-659 disconnect terminal block securely and efficiently online.
Buy Now
