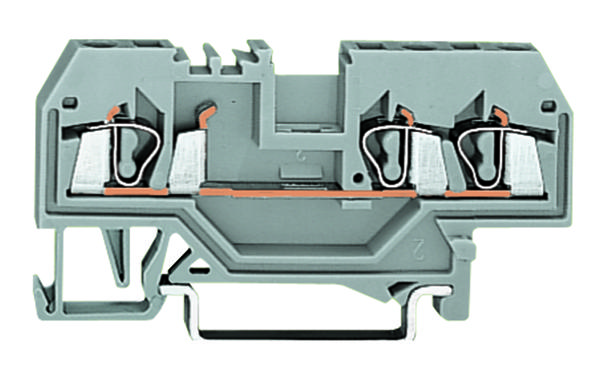

WAGO 281652 4-Conductor Terminal Block
The WAGO 281-652 is a robust and reliable 4-conductor through terminal block specifically engineered for rail-mounted applications. Its cage clamp connection ensures a secure and vibration-resistant termination of conductors, while the front-entry design simplifies wiring processes. The terminal block is suitable for use in a wide range of industrial environments, including power distribution panels, control cabinets, and automation systems. It is designed to handle significant voltage and current loads, making it ideal for demanding applications. The center marking facilitates easy identification and organization within the terminal strip.
WAGO 281652 4-Conductor Terminal Block Specifications:
- product_group: Rail Mounted Terminal Blocks
- cross_section_from_mm2: 0.08 mm²
- cross_section_to_mm2: 4 mm²
- cross_section_from_AWG: 28 AWG
- cross_section_to_AWG: 12 AWG
- connection_method: CAGE CLAMP®CONNECTION
- measured_voltage_en: 800 V
- measured_shock_voltage: 8 kV
- pollution_degree: 3
- current_intensity_en: 26 A
- weight: 12.948 g
- color: grey
- wiring_type: Front-entry
- no_of_connection_points: 4
- no_of_potentials: 1
- height: 29 mm
- height_in: 1.14 in
- width: 6 mm
- width_in: 0.236 in
- depth: 86 mm
- depth_in: 3.39 in
- strip_length_from: 9 mm
- strip_length_to: 10 mm
- strip_length_in: 0.37 in
- admission_office: ABS, BBJ, BV, CCA, CSA, CSM, DEMKO, Dep.MaE, DNV, GL, KEMA, KR, LR, LR, NEMKO, PRS, PRS, RMR, RosTesT, UL
- approval_no: 05-HG476175/1-PDA, B/12/700/03, 07436/Co, NL5591/1, 154112-1505034, 017956, 113344, CS4866N, E7570, 17295-00HH, 2076376.01, HMB05880-EL001, 91/20112(E3), 91/20112(E5), L92062, TE/1219/880590/98, TE/1718/880590/08, 11130002, B09523, E45172
- voltage_v: 800
- current_a: 26
- cross_section_mm2: 4.0
Buy the 281-652 WAGO 4-Conductor Terminal Block | myMectronic
Purchase the WAGO 281-652 terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 281652?
You can click on the BUY or RFQ button to purchase 281652 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 281652?
You can download the 281652 datasheet or visit the WAGO website for support.
Who is the manufacturer of 281652?
WAGO
