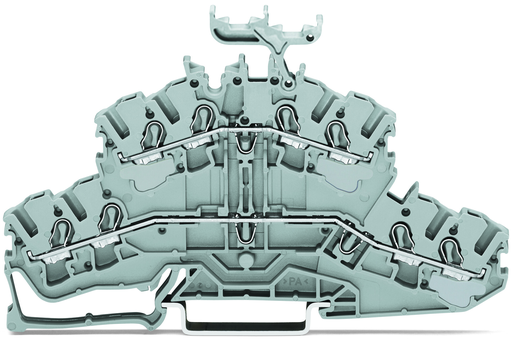

WAGO 20022431 4-conductor double deck terminal block
The WAGO 2002-2431 is a versatile 4-conductor double deck terminal block ideal for a wide range of industrial applications. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this terminal block utilizes the Push-in CAGE CLAMP® connection technology for secure and efficient wire termination. It is suitable for applications requiring high voltage and current handling, such as power distribution, control circuits, and automation systems. The terminal block's robust construction and reliable performance ensure long-lasting operation in demanding environments.
WAGO 20022431 4-conductor double deck terminal block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 24 A
- Rated current (2): 28 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 20 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 20 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 20 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 20 A
- Connection technology: Push-in CAGE CLAMP®
- Number of connection points (connection type): 4
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor, push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 1 … 2.5 mm² / 18 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1 … 2.5 mm² / 18 … 12 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Number of connection points: 4
- Total number of connection points: 8
- Total number of potentials: 2
- Number of levels: 2
- Width: 5.2 mm / 0.205 inch
- Height from upper-edge of DIN-35 rail: 62.7 mm / 2.469 inch
- Depth: 105.1 mm / 4.138 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Potential marking: L/L
- Marking level: Center/side marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.308 MJ
- Weight: 16.2 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4050821144878
- Customs Tariff No.: 85369010000
