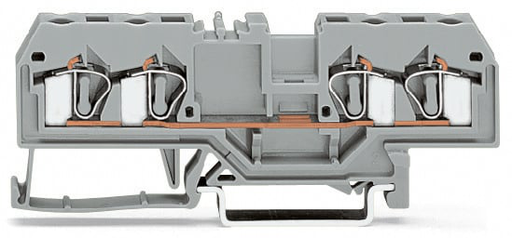

WAGO 281668 4-conductor terminal block
The WAGO 281-668 is a robust and reliable 4-conductor through terminal block ideal for various industrial applications. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, it utilizes WAGO’s innovative CAGE CLAMP® spring pressure connection technology for secure and efficient connections. The block is suitable for solid aluminum conductors when used with WAGO “Alu-Plus” Contact Paste, which prevents oxidation and corrosion. It is a versatile solution for power distribution and signal transmission in control cabinets and automation systems.
WAGO 281668 4-conductor terminal block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 26 A
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 9 … 10 mm / 0.35 … 0.39 inch
- Width: 6 mm / 0.236 inch
- Height from upper-edge of DIN-35 rail: 29 mm / 1.142 inch
- Depth: 86 mm / 3.386 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Color: yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.205 MJ
- Weight: 12.7 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918486637
- Customs Tariff No.: 85369010000
Buy the 281-668 WAGO 4-conductor terminal block | myMectronic
Purchase the WAGO 281-668 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 281668?
You can click on the BUY or RFQ button to purchase 281668 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 281668?
You can download the 281668 datasheet or visit the WAGO website for support.
Who is the manufacturer of 281668?
WAGO
