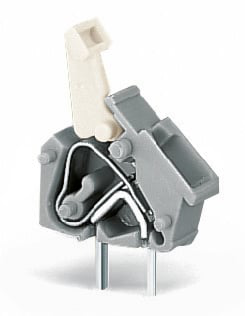

WAGO 256401 Modular PCB Terminal Block
The WAGO 256-401 modular PCB terminal block provides a robust and space-saving solution for connecting wires to printed circuit boards. Utilizing WAGO’s innovative CAGE CLAMP® connection technology, it ensures a secure and vibration-resistant connection, simplifying wiring and reducing maintenance. This terminal block is suitable for a wide range of industrial applications, including automation, power distribution, and control systems, where reliable and efficient connectivity is essential. Its compact design and versatile wire gauge support make it a valuable component for various electronic projects and industrial equipment.
WAGO 256401 Modular PCB Terminal Block Specifications:
- Product Type: MODULAR PCB TERMINAL BLOCK
- Pole Count: 1
- Pin Spacing: 5/5.08 mm / 0.2 in
- Front Entry: Yes
- Connection Method: CAGE CLAMP®CONNECTION
- Voltage UL: 300 V
- Voltage CSA: 300/600 V
- Current UL: 15 A
- Current CSA: 15/5 A
- Measured Voltage EN: 250 V
- Measured Shock Voltage: 4 kV
- Pollution Degree: 2/3
- Current Intensity EN: 16 A
- Weight: 0.94 g
- Color: grey
- Wiring Type: Angled
- Number of Connection Points: 1
- Number of Potentials: 1
- Height: 18.2 mm / 0.72 in
- Width: 5 mm / 0.197 in
- Depth: 17.6 mm / 0.693 in
- Strip Length: 5-6 mm / 0.22 in
- Cross Section Range (mm²): 0.08-2.5
- Cross Section Range (AWG): 28-12
- BBJ Approval: B/12/697/03
- BV Approval: 11915/A0
- CCA Approval: DK2082
- CSA Approval: 18677-45
- CSM Approval: 017956
- DEMKO Approval: 98-04355
- DNV Approval: E6998
- GL Approval: 17296-00HH
- KEMA Approval: 93.9001.01
- RMR Approval: 99.00007.250
- RosTesT Approval: B09523
- UL Approval: E45172
Buy the 256-401 WAGO Modular PCB Terminal Block | myMectronic
Purchase the WAGO 256-401 modular PCB terminal block securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 256401?
You can click on the BUY or RFQ button to purchase 256401 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 256401?
You can download the 256401 datasheet or visit the WAGO website for support.
Who is the manufacturer of 256401?
WAGO
