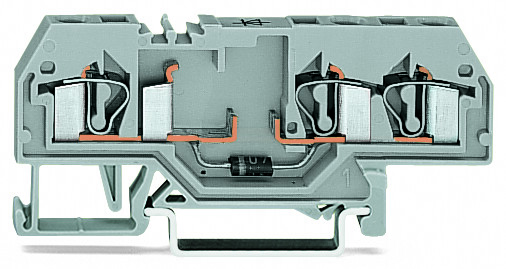

WAGO 281673281411 3-conductor diode terminal block
The WAGO 281-673/281-411 is a 3-conductor diode terminal block designed for robust and efficient electrical connections. It incorporates a 1N4007 diode for protection against reverse polarity and voltage spikes. The CAGE CLAMP® connection technology ensures secure and vibration-resistant connections, simplifying installation and maintenance. This terminal block is ideal for applications in industrial automation, power distribution, and control systems where reliable diode protection and compact terminal block solutions are required. Its horizontal design and DIN rail mounting capability further enhance its versatility and ease of integration into existing systems.
WAGO 281673281411 3-conductor diode terminal block Specifications:
- Total number of connection points: 2
- Total number of potentials: 1
- Color: gray
- Nominal current [A]: 0.5
- Nominal voltage [V]: 250
- Reverse voltage [V]: 1000
- Connection technology (1): CAGE CLAMP®
- Cross section from (1) [mm²]: 0.08
- Cross section up to (1) [mm²]: 4
- Cross section from (1) [AWG]: 28
- Cross section up to (1) [AWG]: 12
- Stripped length from (1) [mm]: 9
- Stripped length up to (1) [mm]: 10
- Stripped length (1) [in]: 0.37
- Type of wiring: Front-entry wiring
- Design: horizontal
- Marking level: Center marking
- Fire load [MJ]: 0.195
- Weight [g]: 11.378
- Width [mm]: 6
- Width [in]: 0.236
- Height [mm]: 29
- Height [in]: 1.142
- Length [mm]: 73.5
- Length [in]: 2.894
- Type of mounting: DIN 35 rail
