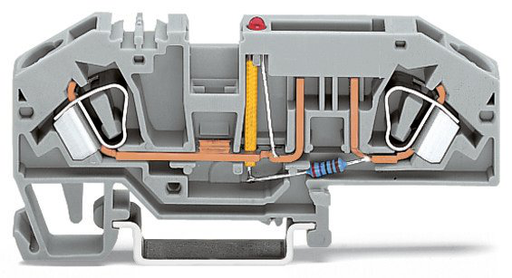

WAGO 282698281449 2-Conductor Fuse Terminal Block
The WAGO 282-698/281-449 is a 2-conductor fuse terminal block specifically engineered for automotive blade-style fuses. It incorporates a convenient test option and visual blown fuse indication through an LED, enhancing safety and ease of maintenance. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this terminal block utilizes the CAGE CLAMP® connection technology for reliable and efficient wire termination. Its robust construction and clear marking level make it ideal for industrial and automotive applications requiring secure and easily identifiable fuse protection.
WAGO 282698281449 2-Conductor Fuse Terminal Block Specifications:
- Nominal Voltage (III/3): 400 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 25 A
- Rated Current 2: 30 A
- Operation Status Indicator: 12 V
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-Stranded Conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Strip Length: 12 … 13 mm / 0.47 … 0.51 inch
- Total Number of Connection Points: 2
- Total Number of Potentials: 2
- Number of Levels: 1
- Wiring Type: Front-entry wiring
- Width: 8 mm / 0.315 inch
- Height from Upper-Edge of DIN-Rail: 33.5 mm / 1.319 inch
- Depth: 85 mm / 3.346 inch
- Design: angled
- Mounting Type: DIN-35 rail
- Marking Level: Center marking
- Insulation Material: Polyamide 66 (PA 66)
- Fire Load: 0.304 MJ
- Weight: 17.9 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging Type: BOX
- Country of Origin: CN
- GTIN: 4055143260749
- Customs Tariff Number: 85369095990
