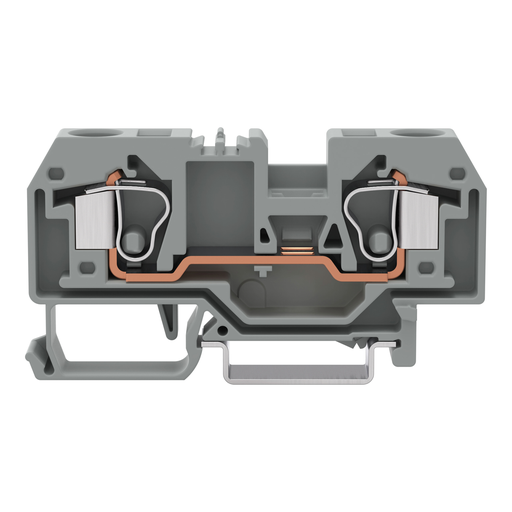

WAGO 284901 2-Conductor Terminal Block
The WAGO 284-901 is a robust and reliable 2-conductor through terminal block ideal for use in industrial control panels and electrical distribution systems. Its CAGE CLAMP® connection ensures a secure and vibration-resistant connection, simplifying maintenance and reducing downtime. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this terminal block offers a space-saving solution for compact installations. The center marking facilitates easy identification and labeling, enhancing overall system organization and efficiency. With a 10 mm² wire gauge capacity, it's suitable for a wide range of applications requiring reliable power and signal transmission.
WAGO 284901 2-Conductor Terminal Block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 57 A
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper
- Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Strip length: 12 … 13 mm / 0.47 … 0.51 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Width: 10 mm / 0.394 inch
- Height from upper-edge of DIN-35 rail: 35 mm / 1.378 inch
- Depth: 78 mm / 3.071 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.348 MJ
- Weight: 23.1 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918305730
- Customs Tariff No.: 85369010000
