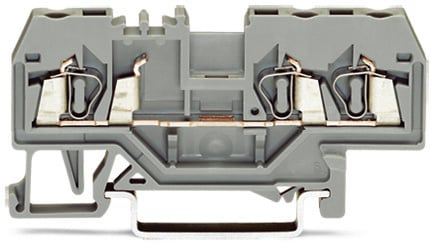

WAGO 280650 3-Conductor Terminal Block
The WAGO 280-650 is a versatile 3-conductor terminal block suitable for rail mounting on TS 35 profiles. Its robust CAGE CLAMP® connection ensures a secure and vibration-resistant connection. With a voltage rating of 800V and a current carrying capacity of 24A, it's well-suited for power distribution in industrial control panels, machinery, and automation systems. The block's compact dimensions (28mm height, 5mm width, 64mm depth) make it ideal for space-constrained applications. It is RoHS compliant and approved by various agencies including ABS, BV, and CSA, ensuring its suitability for a wide range of applications.
WAGO 280650 3-Conductor Terminal Block Specifications:
- product_description: 3-CONDUCTOR THROUGH TERMINAL BLOCK
- packing_unit: 100 pieces
- cross_section_mm2: 0.08 - 2.5 mm²
- cross_section_awg: 28 - 12 AWG
- connection_method: CAGE CLAMP® CONNECTION
- measured_voltage_en: 800 V
- measured_shock_voltage: 8 kV
- pollution_degree: 3
- current_intensity_en: 24 A
- weight: 7.66 g
- color: orange
- wiring_type: Front-entry
- no_of_connection_points: 3
- no_of_potentials: 1
- height: 28 mm
- height_in: 1.1 in
- width: 5 mm
- width_in: 0.197 in
- depth: 64 mm
- depth_in: 2.52 in
- strip_length_from: 8 mm
- strip_length_to: 9 mm
- strip_length_in: 0.33 in
- mounting: TS 35
- admission_office_abs: 05-HG476175/3-PDA
- approval_no_bv: 07436/Co
- approval_no_cca: NL5855
- approval_no_csa: 154112-1536071
- approval_no_dnv: E-10423
- approval_no_gl: 17295-00HH
- approval_no_kema: 2082859.07
- approval_no_lr: 91/20112(E6)
- approval_no_prs: TE/1718/880590/08
- approval_no_rmr: 11130002
- approval_no_ur: E45172
- voltage_v: 800
- current_a: 24
