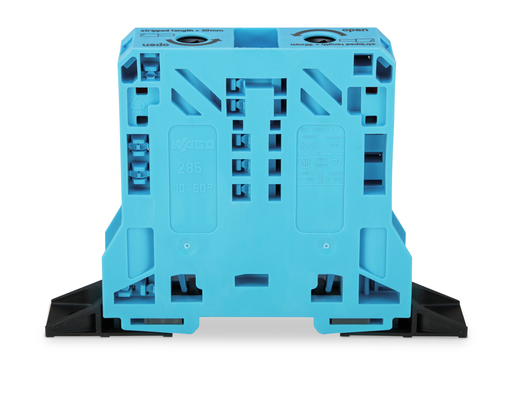

WAGO 285144 2-conductor Through Terminal Block
The WAGO 285-144 is a robust 2-conductor through terminal block engineered for reliable power distribution in industrial settings. It utilizes WAGO’s POWER CAGE CLAMP connection technology, ensuring a secure and vibration-resistant connection for conductors ranging from 10 to 70 mm². The block’s design incorporates lateral marker slots for easy identification and fixing flanges for stable mounting. Constructed from durable polyamide 66 (PA 66), it offers excellent insulation and fire resistance, making it suitable for demanding applications requiring high current carrying capacity and dependable performance. It is ideal for use in control cabinets, power distribution systems, and machinery.
WAGO 285144 2-conductor Through Terminal Block Specifications:
- Rated voltage (III / 3): 1000 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 150 A
- Connection technology: POWER CAGE CLAMP
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 10 … 50 mm² / 8 … 1/0 AWG
- Fine-stranded conductor: 10 … 70 mm² / 8 … 2/0 AWG
- Strip length: 30 mm / 1.18 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Width: 20 mm / 0.787 inch
- Height: 94 mm / 3.7 inch
- Height from the surface: 94 mm / 3.7 inch
- Depth: 130 mm / 5.118 inch
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
- Color: blue
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0 MJ
- Weight: 165.07 g
- Country of origin: PL
- GTIN: 4055143608312
- Customs Tariff No.: 85369010000
- CCA Approval: EN 60947
- NTR NL: 7707
- CSA Approval: C22.2
- DEKRA Certification B.V. Approval: EN 60947
- KEMA/KEUR Approval: EN 60947
- UL Approval: UL 1059
- Compatible Product 1: 285-440 (Protective warning marker)
- Compatible Product 2: 285-441 (Finger guard)
- Compatible Product 3: 2009-115 (WMB-Inline)
- Compatible Product 4: 285-442 (Adaptor)
- Compatible Product 5: 793-501 (WMB marking card)
