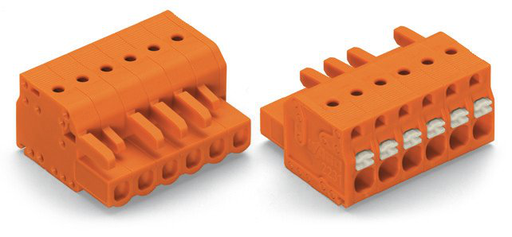

WAGO 2231312026000 12-pole Female Connector
The WAGO 2231-312/026-000 is a versatile 12-pole female connector within WAGO's Multi Connection System. Designed for universal conductor compatibility, it simplifies wiring processes with its push-button mechanism and push-in termination. This connector is ideal for applications requiring reliable connections in industrial automation, control panels, and power distribution systems. Its robust construction and ratings of up to 320V and 16A ensure dependable performance. Coding options are available for enhanced circuit identification and prevention of mismating.
WAGO 2231312026000 12-pole Female Connector Specifications:
- Base Part Number: 2231-312/026-000
- Conductor Size: 0.2 - 2.5 mm² / 24 - 12 AWG
- Pin Spacing: 5.08 mm
- Number of Poles: 12
- Nominal Voltage (III/3): 320 V
- Rated Surge Voltage (III/3): 4 kV
- Rated Current: 16 A
- Material: Polyamide (PA66)
- Flammability Class: V0
- Color: orange
- Width: 62.46 mm
- Height: 15 mm
- Depth: 25.6 mm
- Weight: 19 g
- UL Voltage: 300 V
- UL Current: 15 A
- CSA Voltage: 300 V
- CSA Current: 15 A
- Operating Temperature: -60 to +100 °C
- Connection Technology: Push-in CAGE CLAMP®
- Strip Length: 10 - 11 mm
