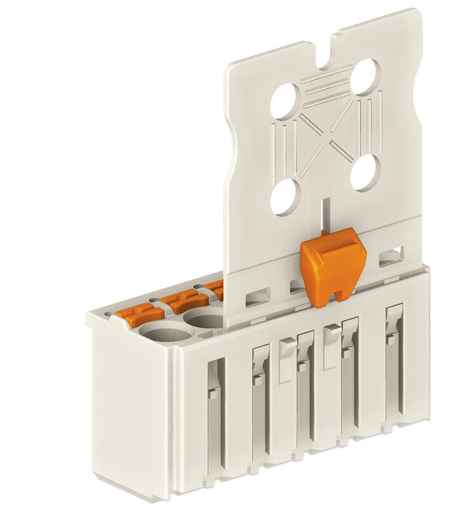

WAGO 20921102002000 2-pole Female Plug Connector
The WAGO 2092-1102/002-000 is a 2-pole female plug connector within the picoMAX series, engineered for versatile conductor connections. Its push-in CAGE CLAMP® technology simplifies termination for both solid and ferruled conductors, eliminating the need for special tools. The sliding connector release allows for easy disconnection and mating, even while the connector is wired. This connector is suitable for a wide range of industrial applications, including power distribution, control systems, and automation equipment. It's designed for reliable performance and ease of use, contributing to efficient and safe electrical installations. The connector's robust construction and high-quality materials ensure long-term durability and consistent performance in demanding environments.
WAGO 20921102002000 2-pole Female Plug Connector Specifications:
- Rated voltage (III / 3): 250 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 16 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-button
- Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
- Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 2.5 mm²
- Strip length: 9 … 10 mm / 0.35 … 0.39 inch
- No. of poles: 2
- Total number of connection points: 2
- Total number of potentials: 2
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 5 mm / 0.197 inch
- Width: 10 mm / 0.394 inch
- Height: 35.4 mm / 1.394 inch
- Depth: 14.4 mm / 0.567 inch
- Material group: I
- Insulating material: Polyphthalamide (PPA GF)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.05 MJ
- Weight: 1.9 g
- Limit temperature range: -60 … +100 °C
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4050821411703
- Customs Tariff No.: 85366990990
Buy the 2092-1102/002-000 WAGO 2-pole Female Plug Connector | myMectronic
Purchase the WAGO 2092-1102/002-000 securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 20921102002000?
You can click on the BUY or RFQ button to purchase 20921102002000 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20921102002000?
You can download the 20921102002000 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20921102002000?
WAGO
