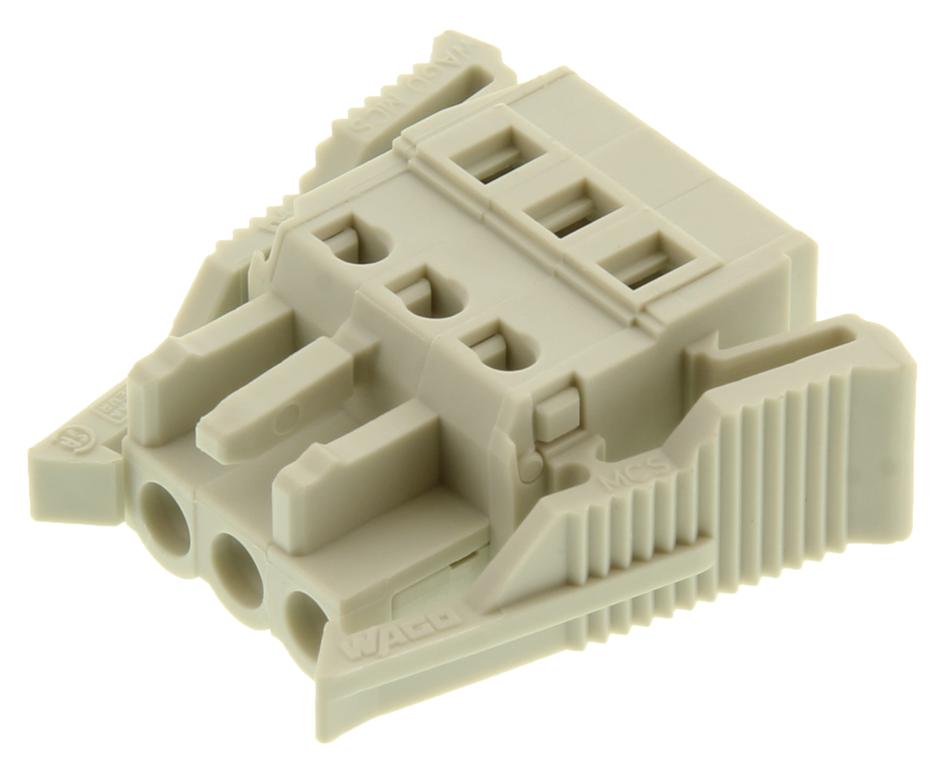

WAGO 721103037000 Female connector
The 721-103/037-000 from Wago is a robust 3-pole female connector designed for industrial use, featuring a 5mm pin spacing and locking levers for secure handling. It employs CAGE CLAMP technology with nickel-chromium spring steel springs and tin-plated copper alloy contacts for reliable electrical connections. The connector’s dimensions are 29.6mm x 31.6mm x 14.3mm, with a lightweight 7.16g. Rated for 320V and 16A, it complies with IEC/EN 60664-1 standards, suitable for temperatures from -60°C to 85°C, and meets UL94 V-0 flammability standards, ensuring safety and durability in various environments.
WAGO 721103037000 Female connector Specifications:
- Number of Poles: 3
- Pin Spacing: 5 mm / 0.197 in
- Housing Material: Polyamide 6.6, light grey
- Contact Material: Tin-plated copper alloy
- Clamping Spring Material: Nickel-chromium spring steel
- Rated Voltage: 320V
- Rated Current: 16A
- Dimensions: 29.6mm x 31.6mm x 14.3mm
- Weight: 7.16g
- Temperature Range: -60°C to 85°C
- Flammability Standard: UL94 V-0
- Connection Technology: CAGE CLAMP
- Application: Industrial wiring, secure plug-in connections
Buy the WAGO Series Female Connector: 3-Pole with Locking Levers 721103037000
Order the WAGO female connector with locking levers, 3 poles, and 5mm spacing for durable, secure industrial connections. Designed with CAGE CLAMP technology for easy wiring and reliable performance. Its compact dimensions of 29.6mm x 31.6mm x 14.3mm ensure space efficiency. Rated for 320V and 16A, rated for -60°C to 85°C, and compliant with IEC/EN 60664-1 standards for safety. Perfect for automation, control panels, and industrial wiring projects needing robust and secure connections.
Get WAGO 721-103/037-000 today—built for secure, reliable electrical connections with locking levers and a 5mm pin spacing.
