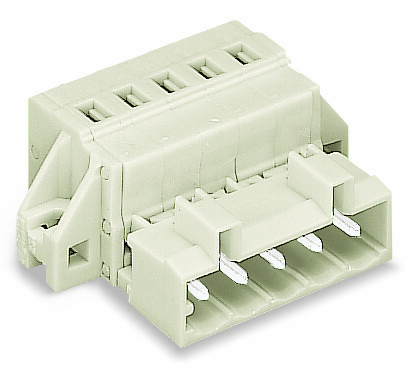

WAGO 721605019000 5-pole Male Connector
The WAGO 721-605/019-000 is a robust 5-pole male connector within the MULTI CONNECTION SYSTEM (MCS). It utilizes the innovative CAGE CLAMP technology for secure and efficient conductor connections, accommodating solid and stranded conductors with or without ferrules. The connector is designed for versatile applications, including wire-to-wire and board-to-wire connections, and is suitable for both feed-through and panel mounting. Its 100% mismating protection and coding fingers ensure reliable and error-free connections. It is rated for 320V and 12A, and holds various approvals including UL, CSA, and DEKRA.
WAGO 721605019000 5-pole Male Connector Specifications:
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 15 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 2.5 mm²
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 5
- Total number of connection points: 5
- Total number of potentials: 5
- Number of connection types: 1
- Number of levels: 1
- Conductor entry direction to mating direction: 0 °
- Pin spacing: 5 mm / 0.197 inch
- Width: 39.8 mm / 1.567 inch
- Height: 14.3 mm / 0.563 inch
- Depth: 27.5 mm / 1.083 inch
- Mounting type: Mounting flange
- Type of mounting: Feed-through mounting, Panel mounting
- Contact type (pluggable connector): Male connector/plug
- Connector connection type: for conductors
- Mismating protection: Yes
- Color: light gray
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.166 MJ
- Weight: 8.7 g
- Limit temperature range: -60 … +100 °C
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918262934
- Customs Tariff No.: 85366990990
