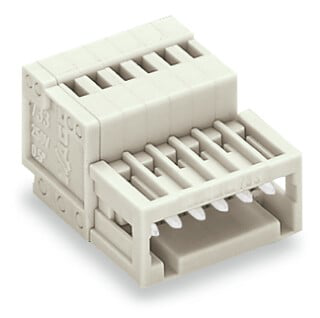

WAGO 733203 3-pole Connector
The WAGO 733-203 is a robust and reliable 3-pole male connector designed for use in various industrial applications. Its CAGE CLAMP connection technology ensures easy and secure termination of conductors, while the 100% mismating protection guarantees a consistent and dependable connection. This connector is ideal for applications requiring efficient power distribution and reliable connectivity, such as control panels, machinery, and automation systems. The lightweight design and compact size make it suitable for space-constrained environments. It is compatible with a range of conductor sizes and offers excellent electrical performance.
WAGO 733203 3-pole Connector Specifications:
- Material: Polyamide 66 (PA 66)
- Color: light gray
- Number of poles: 3
- Pin spacing: 2.5 mm
- Rated voltage (III/3): 100 V
- Rated surge voltage (III/3): 2.5 kV
- Rated current: 6 A
- Solid conductor size: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-stranded conductor size: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-stranded conductor with ferrule size: 0.25 … 0.34 mm²
- Strip length: 5 … 6 mm / 0.2 … 0.24 inch
- Mismating protection: Yes
- Approvals: CCA, CSA, UL
- Flammability class: V0
Buy the 733-203 WAGO 3-pole Connector | myMectronic
Purchase the WAGO 733-203 connector securely and efficiently online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 733203?
You can click on the BUY or RFQ button to purchase 733203 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 733203?
You can download the 733203 datasheet or visit the WAGO website for support.
Who is the manufacturer of 733203?
WAGO
