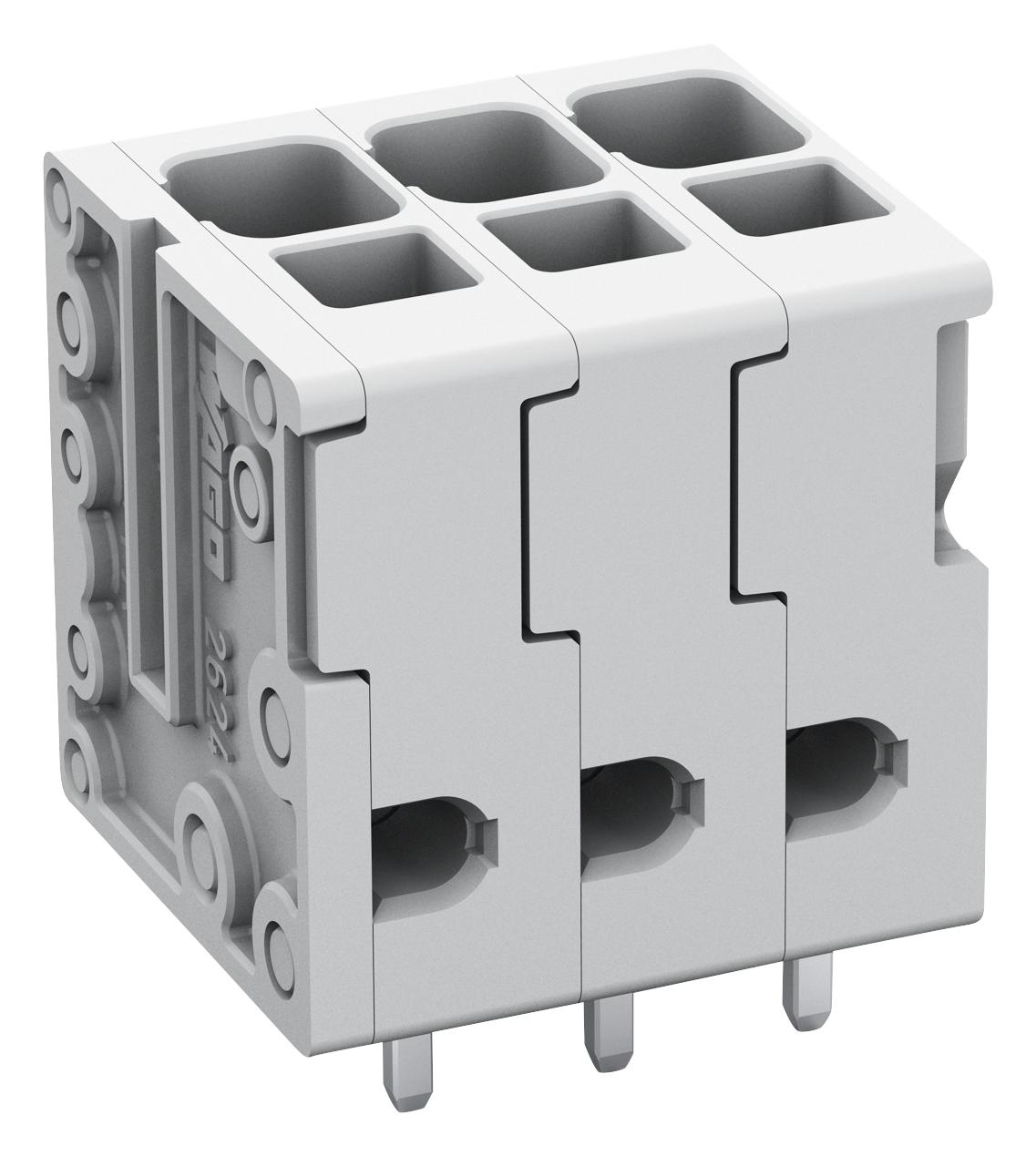

WAGO 26243105 5-pole PCB Terminal Block
The WAGO 2624-3105 is a robust 5-pole PCB terminal block designed for reliable connections in a variety of industrial applications. Utilizing the innovative Push-in CAGE CLAMP connection technology, it allows for quick and secure termination of both solid and ferruled conductors. This terminal block is ideal for panel feedthrough applications, offering parallel conductor entry and the ability to perform testing both parallel and perpendicular to the conductor. It is rated for a nominal voltage of 320V and a rated current of 41A, ensuring dependable performance in demanding environments. The block is also certified by UL, CSA, and KEMA, providing assurance of quality and safety.
WAGO 26243105 5-pole PCB Terminal Block Specifications:
- Nominal Voltage (III/3): 320 V
- Rated Surge Voltage (III/3): 4 kV
- Nominal Voltage (III/2): 400 V
- Rated Surge Voltage (III/2): 4 kV
- Nominal Voltage (II/2): 630 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 41 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 26 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 26 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 5 A
- Connection Technology: Push-in CAGE CLAMP®
- Solid Conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-Stranded Conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-Stranded Conductor with Insulated Ferrule: 0.25 … 2.5 mm²
- Fine-Stranded Conductor with Uninsulated Ferrule: 0.25 … 2.5 mm²
- Fine-Stranded Conductor with Twin Ferrule: 0.25 … 1.5 mm²
- Strip Length: 10 … 12 mm / 0.39 … 0.47 inch
- Conductor Connection Direction to PCB: 90 °
- Pole No.: 5
- Total Number of Connection Points: 5
- Total Number of Potentials: 5
- Number of Connection Types: 1
- Number of Levels: 1
- Pin Spacing: 5 mm / 0.197 inch
- Width: 26.5 mm / 1.043 inch
- Height: 20.3 mm / 0.799 inch
- Height from Surface: 16.3 mm / 0.642 inch
- Depth: 15.4 mm / 0.606 inch
- Solder Pin Length: 4 mm
- Solder Pin Dimensions: 0.8 x 1 mm
- Drilled Hole Diameter with Tolerance: 1.3 (+0.1) mm
- Material Group: I
- Insulation Material: Polyamide (PA66)
- Flammability Class per UL94: V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E) Cu
- Contact Plating: tin-plated
- Weight: 8.2 g
- Limit Temperature Range: -60 … +105 °C
