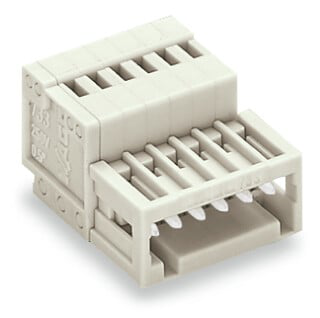

WAGO 733210 10-pole Connector
The WAGO 733-210 is a robust 10-pole male connector designed for reliable wire-to-wire connections in industrial automation systems. Its CAGE CLAMP actuation simplifies both pre-assembly and on-unit wiring, while the 100% mismating protection ensures secure connections. The connector supports a wide range of conductor types and sizes, making it versatile for diverse applications. It is rated for 100V and 6A, and is UL and CSA approved, ensuring compliance with industry standards. The light gray polyamide 66 housing provides durability and insulation.
WAGO 733210 10-pole Connector Specifications:
- Rated voltage (III / 3): 100 V
- Rated impulse voltage (III / 3): 2.5 kV
- Rated voltage (III / 2): 160 V
- Rated impulse voltage (III / 2): 2.5 kV
- Rated voltage (II / 2): 320 V
- Rated impulse voltage (II / 2): 2.5 kV
- Rated current: 6 A
- Rated voltage UL (Use Group B): 150 V
- Rated current UL (Use Group B): 4 A
- Rated voltage CSA (Use Group B): 150 V
- Rated current CSA (Use Group B): 4 A
- Connection technology: CAGE CLAMP®
- Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-stranded conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 0.34 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 0.34 mm²
- Strip length: 5 … 6 mm / 0.2 … 0.24 inch
- No. of poles: 10
- Total number of connection points: 10
- Total number of potentials: 10
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 2.5 mm / 0.098 inch
- Width: 27.5 mm / 1.083 inch
- Height: 11.8 mm / 0.465 inch
- Depth: 20.3 mm / 0.799 inch
- Contact type: Male connector/plug
- Mismating protection: Yes
- Color: light gray
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.097 MJ
- Weight: 4.9 g
- Limit temperature range: -60 … +100 °C
- Packaging type: BOX
- Country of origin: PL
- GTIN: 4044918849609
- Customs Tariff No.: 85366990990
