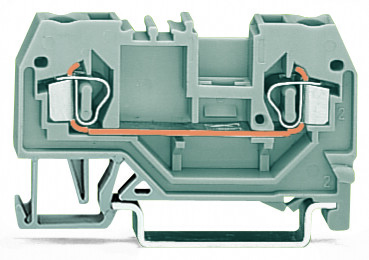

WAGO 280903 2-Conductor Through Terminal Block
The WAGO 280-903 is a robust and reliable 2-conductor through terminal block specifically engineered for rail-mounted applications. Utilizing WAGO’s innovative CAGE CLAMP® connection technology, this terminal block ensures secure and vibration-resistant connections. It is designed to handle a current intensity of up to 24A and a voltage rating of 800V, making it suitable for a wide range of industrial control and automation systems. The block’s compact dimensions (28mm height, 5mm width, 53mm depth) facilitate efficient space utilization in control cabinets. It is RoHS compliant, demonstrating WAGO’s commitment to environmental responsibility. Various approvals are listed including ABS, BV, CCA, CSA, DNV, GL, KEMA, KR, LR, PRS, RMR, and UR, ensuring suitability for diverse applications and regulatory requirements.
WAGO 280903 2-Conductor Through Terminal Block Specifications:
- product_description: 2-CONDUCTOR THROUGH TERMINAL BLOCK
- packing_unit: 100 pieces
- cross_section_mm2: 0.08 - 2.5 mm²
- cross_section_awg: 28 - 12 AWG
- connection_method: CAGE CLAMP® CONNECTION
- measured_voltage_en: 800 V
- measured_shock_voltage: 8 kV
- pollution_degree: 3
- current_intensity_en: 24 A
- weight: 5.428 g
- color: red
- wiring_type: Front-entry
- no_of_connection_points: 2
- no_of_potentials: 1
- height: 28 mm
- height_in: 1.1 in
- width: 5 mm
- width_in: 0.197 in
- depth: 53 mm
- depth_in: 2.09 in
- strip_length_from: 8 mm
- strip_length_to: 9 mm
- strip_length_in: 0.33 in
- mounting: TS 35
- admission_office: ABS, BV, CCA, CSA, DNV, GL, KEMA, KR, LR, PRS, RMR, UR
- approval_no: 05-HG476175/3-PDA, 07436/Co, NL5855, 154112-1536071, E-10423, 17295-00HH, 2082859.07, HMB05880-EL001, 91/20112(E6), TE/1718/880590/08, 11130002, E45172
