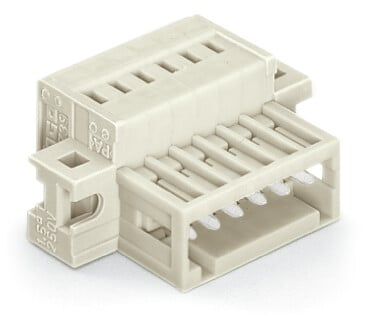

WAGO 734308019000 8-pole Connector
The WAGO 734-308/019-000 is an 8-pole male connector suitable for wire-to-wire and board-to-wire connections. It utilizes the CAGE CLAMP actuation system for easy cable pre-assembly and on-unit wiring. The connector offers 100% protection against mismating and features a clamping collar for secure connections. It is designed for use in various industrial applications requiring reliable and efficient power distribution.
WAGO 734308019000 8-pole Connector Specifications:
- Rated voltage (III / 3): 160 V
- Rated impulse voltage (III / 3): 2.5 kV
- Rated voltage (III / 2): 160 V
- Rated impulse voltage (III / 2): 2.5 kV
- Rated voltage (II / 2): 320 V
- Rated impulse voltage (II / 2): 2.5 kV
- Rated current: 10 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 1.5 mm²
- Strip length: 6 … 7 mm / 0.24 … 0.28 inch
- No. of poles: 8
- Total number of connection points: 8
- Total number of potentials: 8
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 3.5 mm / 0.138 inch
- Width: 42.8 mm / 1.685 inch
- Height: 13.4 mm / 0.528 inch
- Depth: 22.3 mm / 0.878 inch
- Mounting type: Mounting flange
- Type of mounting: Feed-through mounting, Panel mounting
- Contact type (pluggable connector): Male connector/plug
- Mismating protection: Yes
- Color: light gray
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.155 MJ
- Weight: 7.4 g
- Limit temperature range: -60 … +100 °C
