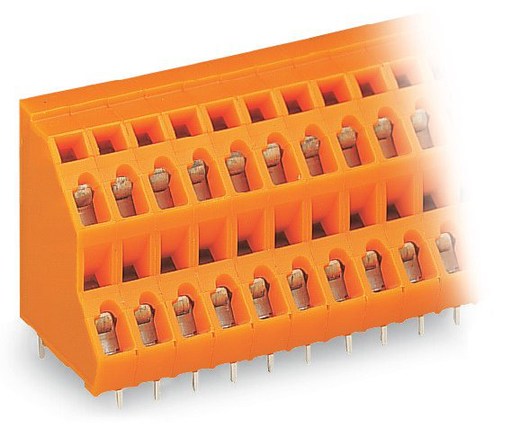

WAGO 736402 Double-deck PCB Terminal Block
The WAGO 736-402 double-deck PCB terminal block provides a compact solution for wiring multiple conductors in confined areas. Its double-deck design maximizes density, while the CAGE CLAMP® connection ensures reliable and vibration-resistant terminations. The terminal block supports a wide range of conductor sizes and is suitable for applications in industrial control panels, automation systems, and power distribution. Custom marking options are available for easy identification and organization. It is rated for 21A and various voltage and impulse voltage levels according to IEC/EN 60664-1 and UL 1059.
WAGO 736402 Double-deck PCB Terminal Block Specifications:
- Rated voltage (III / 3): 250 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 21 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 2.5 mm²
- Strip length: 5 … 6 mm / 0.2 … 0.24 inch
- No. of poles: 2
- Total number of connection points: 4
- Total number of potentials: 4
- Number of levels: 2
- Pin spacing: 5.08 mm / 0.2 inch
- Width: 11.16 mm / 0.439 inch
- Height: 30.5 mm / 1.201 inch
- Height from the surface: 26.5 mm / 1.043 inch
- Depth: 21 mm / 0.827 inch
- Solder pin length: 4 mm
- Solder pin dimensions: 0.7 x 0.7 mm
- Drilled hole diameter (tolerance): 1.3 mm (- … +0.1)
- Color: orange
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.08 MJ
- Weight: 5 g
- Limit temperature range: -60 … +105 °C
