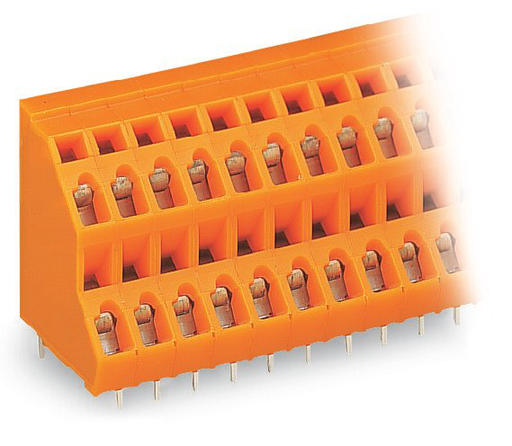

WAGO 736416 Double-Deck PCB Terminal Block
The WAGO 736-416 double-deck PCB terminal block offers a high-density solution for wiring multiple conductors in limited spaces. Its CAGE CLAMP connection ensures reliable and easy termination, while the double-deck design maximizes space utilization. Suitable for a wide range of industrial applications, this terminal block provides a robust and efficient connection solution. It is designed for use in various electrical systems and is ideal for applications requiring compact and reliable power distribution.
WAGO 736416 Double-Deck PCB Terminal Block Specifications:
- Color: orange
- Pin spacing: 5.08 mm / 0.2 inch
- Width: 82.28 mm / 3.239 inch
- Height: 30.5 mm / 1.201 inch
- Height from the surface: 26.5 mm / 1.043 inch
- Depth: 21 mm / 0.827 inch
- Solder pin length: 4 mm
- Solder pin dimensions: 0.7 x 0.7 mm
- Drilled hole diameter with tolerance: 1.3 mm (+0.1)
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor with insulated ferrule: 0.25 … 1.5 mm²
- Fine-stranded conductor with uninsulated ferrule: 0.25 … 2.5 mm²
- Strip length: 5 … 6 mm / 0.2 … 0.24 inch
- Conductor connection direction to PCB: 45 °
- Pole No: 16
- Total number of connection points: 32
- Total number of potentials: 32
- Number of connection types: 1
- Number of levels: 2
- Rated voltage (III/3): 250 V
- Rated surge voltage (III/3): 4 kV
- Rated voltage (III/2): 320 V
- Rated surge voltage (III/2): 4 kV
- Nominal voltage (II/2): 630 V
- Rated surge voltage (II/2): 4 kV
- Rated current: 21 A
- Rated voltage (III/3) 2: 320 V
- Rated surge voltage (III/3) 2: 4 kV
- Rated voltage (III/2) 2: 320 V
- Rated surge voltage (III/2) 2: 4 kV
- Rated voltage (II/2) 2: 630 V
- Rated surge voltage (II/2) 2: 4 kV
- Rated current 2: 21 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Material group: I
- Insulation material: Polyamide 66 (PA66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.556 MJ
- Weight: 37 g
- Limit temperature range: -60 … +105 °C
