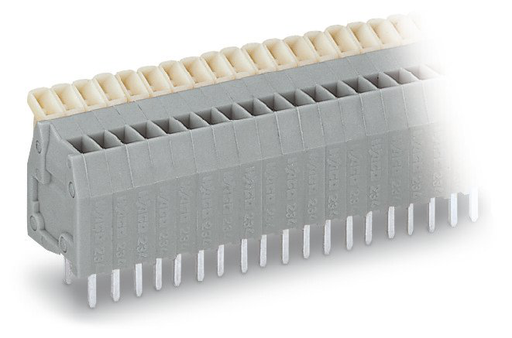

WAGO 234208 8-Pole PCB Terminal Block
The WAGO 234-208 is a versatile 8-pole PCB terminal block designed for reliable connections in a variety of industrial applications. Its push-button actuation and CAGE CLAMP connection simplify wiring, while double solder pins ensure high mechanical stability on the PCB. Suitable for in-the-field wiring, this terminal block offers convenient, tool-free operation and is ideal for applications requiring frequent adjustments or maintenance. It is certified by UL, CSA, and DEKRA, ensuring compliance with industry standards.
WAGO 234208 8-Pole PCB Terminal Block Specifications:
- Rated voltage (III / 3): 63 V
- Rated impulse voltage (III / 3): 2.5 kV
- Rated voltage (III / 2): 160 V
- Rated impulse voltage (III / 2): 2.5 kV
- Rated voltage (II / 2): 320 V
- Rated impulse voltage (II / 2): 2.5 kV
- Rated current: 6 A
- Rated voltage UL (Use Group B): 150 V
- Rated current UL (Use Group B): 4 A
- Rated voltage CSA (Use Group B): 150 V
- Rated current CSA (Use Group B): 4 A
- Connection technology: CAGE CLAMP®
- Actuation type: Push-button
- Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-stranded conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 mm²
- Strip length: 5 … 6 mm / 0.2 … 0.24 inch
- Conductor entry angle to the PCB: 90 °
- No. of poles: 8
- Total number of connection points: 8
- Total number of potentials: 8
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 2.5 mm / 0.098 inch
- Width: 22.2 mm / 0.874 inch
- Height: 18 mm / 0.709 inch
- Height from the surface: 14 mm / 0.551 inch
- Depth: 14.4 mm / 0.567 inch
- Solder pin length: 4 mm
- Solder pin dimensions: 0.5 x 0.75 mm
- Drilled hole diameter (tolerance): 1.1 mm (- … +0.1)
- PCB contact: THT
- Solder pin arrangement: over the entire terminal strip, in line
- Number of solder pins per potential: 2
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.06 MJ
- Weight: 4.1 g
- Limit temperature range: -60 … +105 °C
- Product Group: 4 (Printed Circuit)
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918651547
- Customs Tariff No.: 85369010000
