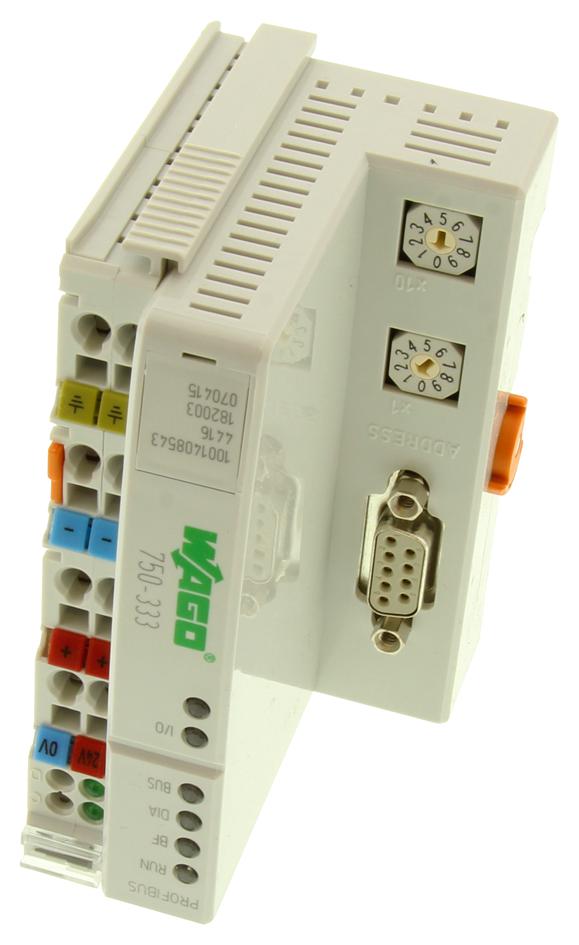

WAGO 750333 PROFIBUS Coupler
The 750-333 is a versatile Fieldbus coupler that connects Wago I/O modules to PROFIBUS DP, supporting data rates up to 12 Mbaud. It automatically detects module configurations for process image creation, allowing deactivation and modification of I/O modules without altering applications. Certified for standards like EN 50170, it ensures reliable diagnostics. Designed for industrial automation, it handles up to 63 modules with process images of 244 bytes each, operating efficiently within -20°C to +60°C. A robust solution for complex control systems, supporting broad connectivity and seamless communication.
WAGO 750333 PROFIBUS Coupler Specifications:
- Supported Baud Rate: 9.6 Kbaud to 12 Mbaud
- Max. number of I/O points: approximately 6000 (depends on master)
- Max. length of fieldbus segment: 100 m to 1200 m (depends on baud rate and cable)
- Number of couplers connected to master: up to 96 with repeater
- Process image size: up to 244 bytes for input and output
- Operating temperature: -20°C to +60°C
- Supply voltage: 24V DC (±10%)
- Power efficiency: approximately 87%
- Connection interface: 1 x D-Sub 9 socket
- Standards and certifications: EN 50170, CE, ABS, BV, DNV, GL, KR, LR, NKK, PRS, RINA
- Certification for hazardous environments: Exd IIC T4, Ex nA IIC T4, TC, ATEX, IECEx
Buy the WAGO Series 750-333 PROFIBUS Coupler: 750-333
Purchase the WAGO Series 750-333 PROFIBUS Coupler online to streamline your automation projects. Featuring seamless integration with Wago I/O modules, supporting data rates up to 12 Mbaud, and diagnostics compliant with EN 50170. Its robust design ensures reliable operation in industrial environments from -20°C to +60°C. With support for up to 63 modules and process images of 244 bytes each, it improves system flexibility and troubleshooting. Secure fast delivery and technical support by ordering now for efficient fieldbus communication solutions.
Order your WAGO Series 750-333 PROFIBUS Coupler today and enhance your automation system with reliable fieldbus communication.
Frequently Asked Questions
Where can I buy WAGO 750333?
You can click on the BUY or RFQ button to purchase 750333 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 750333?
You can download the 750333 datasheet or visit the WAGO website for support.
Who is the manufacturer of 750333?
WAGO
